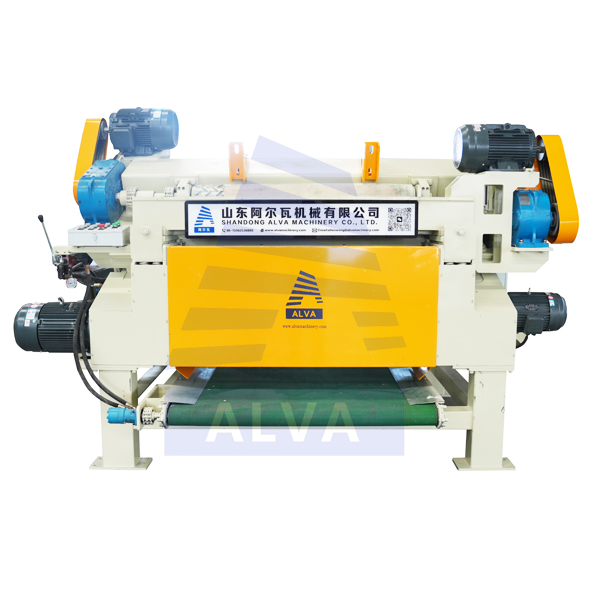

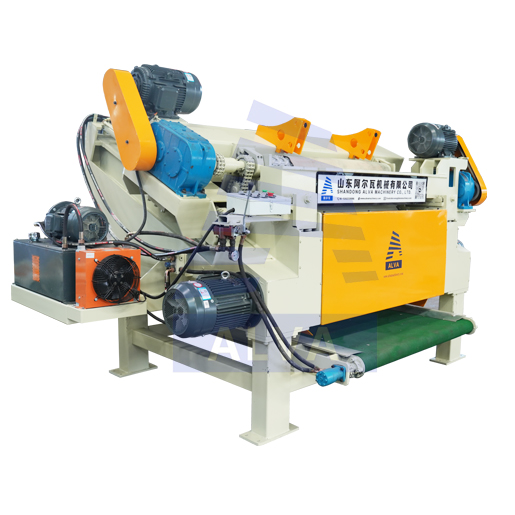

ALVA 4-ft log debarking machinery is a dedicated pre-rounding equipment customized for logs of 1.22m specification. It accurately meets the raw material processing needs of small and medium-sized plywood and veneer production lines, and is widely applicable to the industrial processing of common wood species such as poplar, pine, and eucalyptus, providing high-standard base material guarantee for the subsequent peeling process.
The equipment adopts an exclusive structural design of "double-roller counter-pressure + center positioning". Aiming at the characteristic that 4-foot short logs are prone to deviation, it optimizes the roller group spacing adjustment mechanism and feeding guide device. Through the dual control of mechanical limit and hydraulic buffer, it ensures that the log always maintains center stability during the rounding process, effectively avoiding the end damage problem during short material processing. The machine body adopts a modular splicing process, and the core rounding mechanism and auxiliary support components can be quickly disassembled for maintenance, which is suitable for the equipment layout and maintenance space requirements of small and medium-sized workshops.
| Model | ALVA-WD-4FT |
| Single-roll diameter (mm) | 180 |
| Double-roll diameter (mm) | 180 |
| Knife size (mm) | 1500*80*20 |
| Maximum wood diameter (mm) | 600 |
| Minimum wood diameter (mm) | 80 |
| Overall dimensions (mm) | 4600*2400*1800 |
| Weight（kg） | 6000 |
Adapted Design & Processing Guarantee
Special Tooth Roller Set for Precision Rolling
Compact Layout for Production Line Adaptation
Streamlined Electric Control
