The wood drying process is a critical step in the timber industry, and it is essential for producing high-quality, durable wood products. One of the most effective tools in this process is the drying kiln, a machine designed to remove excess moisture from wood, making it more suitable for use in manufacturing, construction, and other industries. Depending on the specific needs of the operation, different types of drying kilns offer varying benefits.
In this article, we will explore the different types of drying kilns available today, the benefits they offer, and how they impact the wood drying process. Whether you're in the furniture manufacturing, construction, biomass production, or woodworking industries, understanding the various drying kiln options can help you make the right choice for your operation and maximize your productivity.
Before diving into the different types of kilns, it’s important to understand the role of a drying kiln in wood processing. A drying kiln is a specialized chamber used to reduce the moisture content of wood. Freshly cut wood (or green wood) can contain as much as 50% moisture by weight, depending on the species. If this moisture is not properly removed, the wood may warp, crack, or decay, and its durability and strength can be compromised.
A drying kiln controls the temperature, humidity, and airflow within the chamber to evaporate moisture from the wood in a controlled manner. The goal is to bring the moisture content down to an ideal level, which typically ranges from 6% to 20%, depending on the application.
Drying kilns play a significant role in the quality and performance of wood. The process of drying wood properly enhances its dimensional stability, reduces shrinkage and warping, and makes it more durable and resistant to decay. Moreover, wood that is properly dried is easier to handle, cut, and machine, leading to higher productivity and better final products.
Kiln drying also helps reduce the growth of fungi and pests, which are often present in green wood. Properly dried wood is safer, cleaner, and less prone to infestations.
There are several types of drying kilns, each with distinct features, advantages, and ideal use cases. The most common types are conventional kilns, vacuum kilns, dehumidification kilns, and radio frequency kilns. Let’s take a closer look at each of these types:

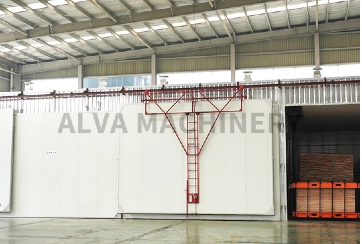

Conventional kilns are the most widely used type of drying kilns in the wood processing industry. These kilns are designed to heat wood using direct heat and steam. They consist of an insulated chamber where wood is stacked, and the temperature and humidity are controlled during the drying process.
There are two primary types of conventional kilns:
Steam Kilns: These kilns use steam to heat the wood. The steam provides both heat and moisture, allowing for a more gradual drying process.
Hot Air Kilns: These kilns use forced air to circulate warm air around the wood, speeding up the drying process.
Cost-effective: Conventional kilns are generally affordable to purchase and operate, making them a popular choice for small to medium-sized operations.
Versatility: They can dry a wide range of wood species, including hardwoods and softwoods, and can handle varying moisture levels.
Simple Operation: Conventional kilns are relatively easy to operate and maintain, making them ideal for businesses with less technical expertise.
Efficient for Large Volumes: These kilns are well-suited for high-volume wood drying, which is essential for sawmills and large woodworking operations.
However, conventional kilns tend to be energy-intensive and may take longer to dry wood compared to other methods.
Vacuum kilns use a different principle for drying wood. Instead of using heat from steam or air, vacuum kilns apply a vacuum to the drying chamber. This reduces the boiling point of water, allowing moisture to evaporate at lower temperatures. As a result, vacuum kilns can dry wood faster and more gently, without causing stress or damage to the material.
Vacuum kilns are especially effective for drying high-value or exotic woods like mahogany, teak, and rosewood that require delicate handling.
Reduced Risk of Damage: The lower drying temperatures prevent the wood from cracking, warping, or checking, which is especially important for high-value timber.
Faster Drying: Because of the lower boiling point of water in a vacuum, vacuum kilns can dry wood faster than conventional methods, reducing turnaround times.
Better for Thick Wood: Vacuum kilns are more effective at drying thick or dense wood, as they can extract moisture without applying too much heat.
Energy-efficient: Vacuum kilns use less energy because they operate at lower temperatures compared to conventional kilns.
The main drawback of vacuum kilns is their higher initial cost and maintenance requirements. They are typically used for more specialized operations and businesses that need to handle high-end wood species.
Dehumidification kilns are another popular choice in the wood drying industry. These kilns use a dehumidification system to remove moisture from the wood by pulling water out of the air inside the drying chamber. Unlike conventional kilns that use heat, dehumidification kilns rely on humidity control to facilitate the drying process.
Dehumidification kilns are particularly suitable for small to medium-scale operations that need to dry wood efficiently without using excessive amounts of energy.
Energy-efficient: Dehumidification kilns are energy-efficient because they don’t rely on high temperatures. Instead, they focus on air circulation and moisture extraction, which requires less power.
Gradual Drying: The controlled environment inside a dehumidification kiln allows wood to dry at a more uniform and gentle rate, reducing the risk of cracks and defects.
Eco-friendly: Since these kilns don’t require fuel or excessive heat, they are a more sustainable option for businesses looking to reduce their environmental impact.
Ideal for Smaller Batches: Dehumidification kilns are perfect for businesses that handle smaller batches of wood and need a cost-effective solution.
However, dehumidification kilns tend to be slower than conventional or vacuum kilns, making them less suitable for high-volume operations.
Radio frequency (RF) kilns use electromagnetic waves to heat the wood. These waves cause the water molecules inside the wood to vibrate, producing heat and causing moisture to evaporate. RF kilns work faster than conventional methods and can dry wood at much lower temperatures.
RF kilns are often used in specialized wood drying applications, such as drying thick wood, laminated veneer lumber (LVL), and engineered wood products.
Fast Drying: RF kilns can dry wood much faster than conventional methods, reducing the overall drying time and increasing throughput.
Uniform Drying: RF technology ensures that moisture is removed uniformly from both the exterior and interior of the wood, preventing warping and cracks.
Low-Temperature Operation: RF kilns operate at relatively low temperatures, making them suitable for high-value woods that are sensitive to heat.
Energy-efficient: These kilns are more energy-efficient compared to conventional methods because they focus on directly heating the wood.
However, RF kilns come with a high upfront cost and specialized maintenance requirements.
When choosing a drying kiln, several factors must be considered, including the type of wood being dried, the scale of your operation, energy consumption, and the desired drying speed. Each type of kiln offers unique advantages, so it’s important to match the right type of kiln to your specific needs.
Conventional kilns are a great choice for high-volume operations that need versatility and cost-efficiency.
Vacuum kilns are ideal for high-value or exotic woods that require gentle drying at lower temperatures.
Dehumidification kilns are perfect for smaller operations looking for an energy-efficient and sustainable option.
RF kilns work well for high-speed drying in specialized applications, especially for thick or engineered wood.
Drying kilns have revolutionized the wood processing industry by providing efficient and controlled methods for reducing moisture in wood. By choosing the right type of kiln, businesses can improve the quality, strength, and durability of their wood products, reduce defects, and increase productivity. Whether you’re involved in furniture making, biomass production, or construction, understanding the different types of drying kilns and their benefits can help you make an informed decision that maximizes the efficiency of your operations and ensures high-quality products for your customers.
