 | Product Introduction |
The combustion chamber adopts corrugated furnace to increase the heating area, strengthen heat transfer, and has good thermal expansion characteristics.
The boiler tube sheet and smoke pipe adopt argon arc welding full-position automatic welding to ensure welding quality.
The boiler adopts high thermal resistance material and closed metal cover as the insulation layer, and has good thermal insulation performance.
The backfire chamber adopts a wet back structure, and the high-temperature flue gas is surrounded by water space, which eliminates the phenomenon of cracks in the boiler tube sheet due to thermal fatigue.
The combustion chamber adopts a corrugated furnace to increase the heating area, strengthen heat transfer, and has good thermal expansion characteristics.
It has a rich heating area and a large enough water space and steam space to ensure that the thermal efficiency in the non-condensing state is not less than 96% and the thermal efficiency in the condensing state is greater than 99%.
The boiler adopts a number of advanced environmental protection technologies, a standard three-pass flue gas structure, and is equipped with imported burners, with high combustion efficiency and reduced pollutant emissions.

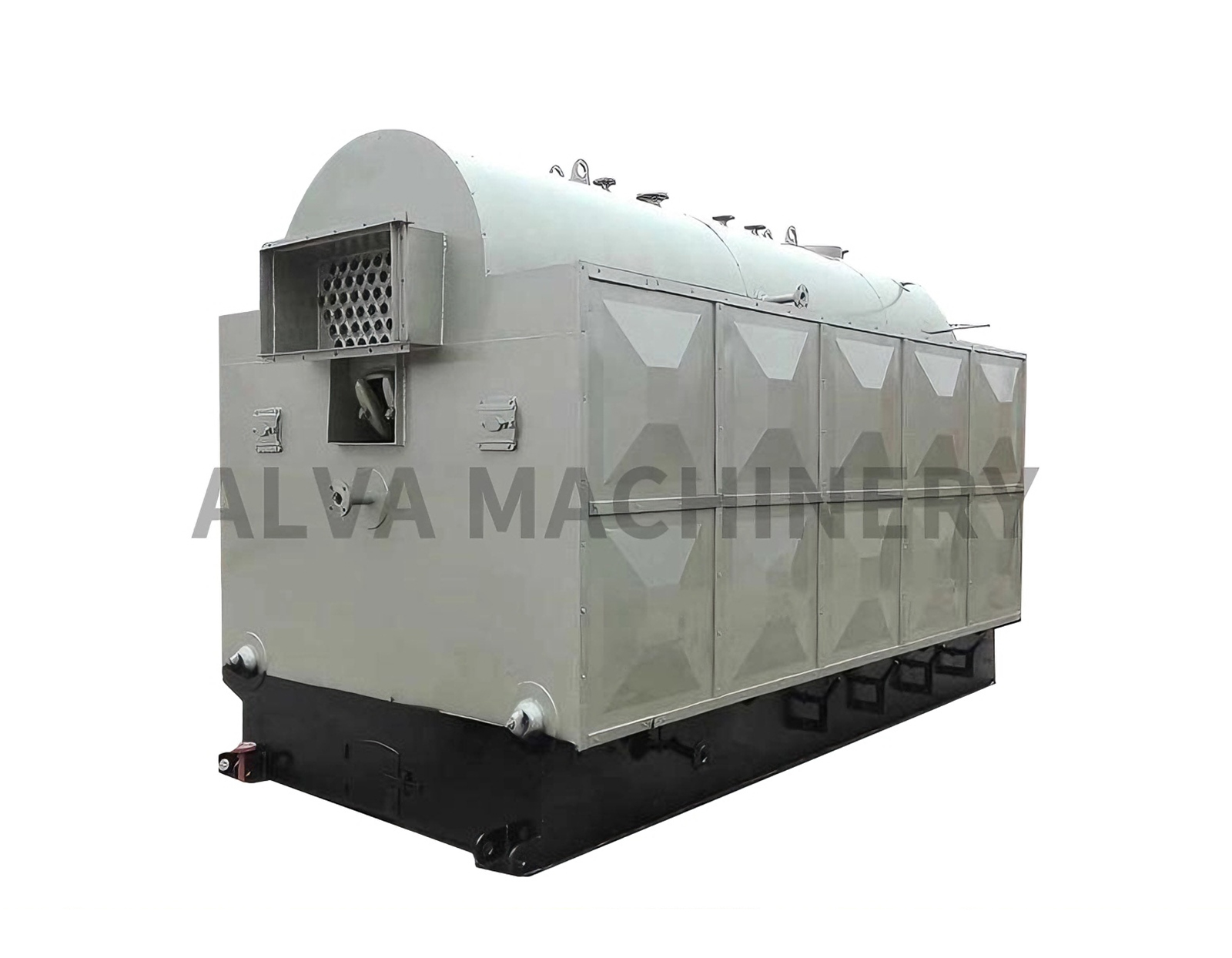

| Product Display |
| Product Parameter |
| MODEL | WN50.5 | WN51 | WN51.5 | WN52 | WN53 | WN54 | WN55 | WN56 | WN58 | |
| Rated Output | T/H | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 | 8 |
| Rated Steam Pressure | MPa | 0.7/1.0/1.25 | 1.0/1.25/1.6 | 1.25/1.6 | ||||||
| Rated steamTemperature | ℃ | 170/184/194 | 184/194/204 | |||||||
| ℃ | 20 | |||||||||
| SO.M | 13 | 30 | 35 | 53 | 77 | 107 | 127 | 198 | 212 | |
| SQ.M | 10 | 12 | 12 | 12 | 15 | 22 | 30 | 35 | 45 | |
| Suitable fuel Kind | Heavy Oillight Oil/Natural Gas/lpg/City Gas | |||||||||
| Fuel Consumption | Light Oil | KG/H | 34 35 | 45-100 | 101.73 | 137.09 | 205.75 | 272.3 | 134-402 | 523 4 |
| Natural Gas | Nm³/H | 41.34 | 18-100 | 123.47 | 165.97 | 249.6 | 329.5 | 80-500 | 631.5 | |
| Equipment Power | Bum Light oil | KW | 0.5 | 1.5 | 2 2 | 2 2 | 7.5 | 9 | 17.2 | 26 |
| Bum Gas | KW | 0.5 | 1.5 | 1.5 | 3 | 7.5 | 7.5 | 15 | 22 | |
| Max Tranport Weight | TON | 35 | 6.8 | 7 | 8.2 | 9 | 12.7 | 14.2 | 21.3 | |
| Boiler Water capacity | CBMM | 1.8 | 3.6 | 4.2 | 4.9 | 8.75 | 9.3 | 9.3 | 15.3 | |
| Product Advantages |
All electrical components adopt internationally renowned brands with stable performance and high reliability, effectively ensuring product safety, stability and long service life in continuous operation.
Each group of electric heating elements is connected by a concentrated beam flange and is independently set up. It has the characteristics of simple structure, high mechanical strength, safety and reliability, easy replacement, and long service life.
It has a large steam space and good steam quality;
The electromechanical is installed separately, and the electric control components are far away from the heat source, which is conducive to heat dissipation. It can be used in parallel alone or in multiple units.
PLC microcomputer programmable control and display screen; The temperature setting is realized through the human-machine interface to automatically control the water outlet temperature. The display screen can display the equipment status operating parameters and fault alarms.
