You use a veneer peeling machine to turn logs into thin wood sheets. The working principle relies on rotating the log while a sharp blade peels off layers to form veneer. This process produces consistent veneer thickness and surface quality. The machine’s working principle ensures that you get stable results and improved mechanical properties. Recent industry data shows that after fermentation, surface roughness drops by 66% and mechanical performance rises. You can see more details in the tables below.
| Performance Metric | Change After 14 Days Fermentation |
|---|---|
| Water Absorption | Increased by 30.5% |
| Surface Brightness | Increased by 3.5% |
| Surface Roughness | Decreased by 66% |
| Metric / Aspect | Evidence Summary |
|---|---|
| Young's Modulus | Samples exceed industrial targets by ~16%, showing better performance. |
| Stiffness | Higher stiffness values confirm good functionality. |
| Veneer Thickness Impact | Thicker veneer in the base layer simplifies production and helps the environment. |
| Statistical Validation | Control charts show stable and predictable production quality. |
| Production Implication | Using fewer layers and no quality classification is possible, proven by quality control methods. |
A veneer peeling machine rotates logs while a sharp blade peels thin wood sheets with consistent thickness and quality.
Key components include the headstock and tailstock for holding logs, knife carriage for cutting, clamping system for stability, pressure bar for controlling thickness, control panel for settings, dust collection for safety, and outfeed system for handling veneer sheets.
Spindle veneer machines offer high precision and work best with large, straight logs for top-quality veneer, but require more maintenance and cost.
Spindleless veneer machines provide flexibility to handle small or irregular logs, deliver higher wood recovery rates, and need less maintenance.
Proper log preparation, including soaking and sorting by size and quality, improves veneer quality and reduces waste.
Regular maintenance like cleaning, lubricating, and checking blades and clamps prevents defects and machine breakdowns.
Adjusting machine settings such as knife gap, pressure, and speed based on wood type ensures smooth peeling and consistent veneer thickness.
Choosing the right machine depends on your log supply, production goals, and desired veneer quality to maximize efficiency and reduce waste.
When you use a veneer peeling machine, the headstock and tailstock play a key role in holding the log steady. The headstock sits at one end of the machine and connects to a motor. This motor spins the log, which is important for creating even veneer sheets. The tailstock supports the other end of the log and keeps it from moving out of place. You can adjust the tailstock to fit logs of different lengths.

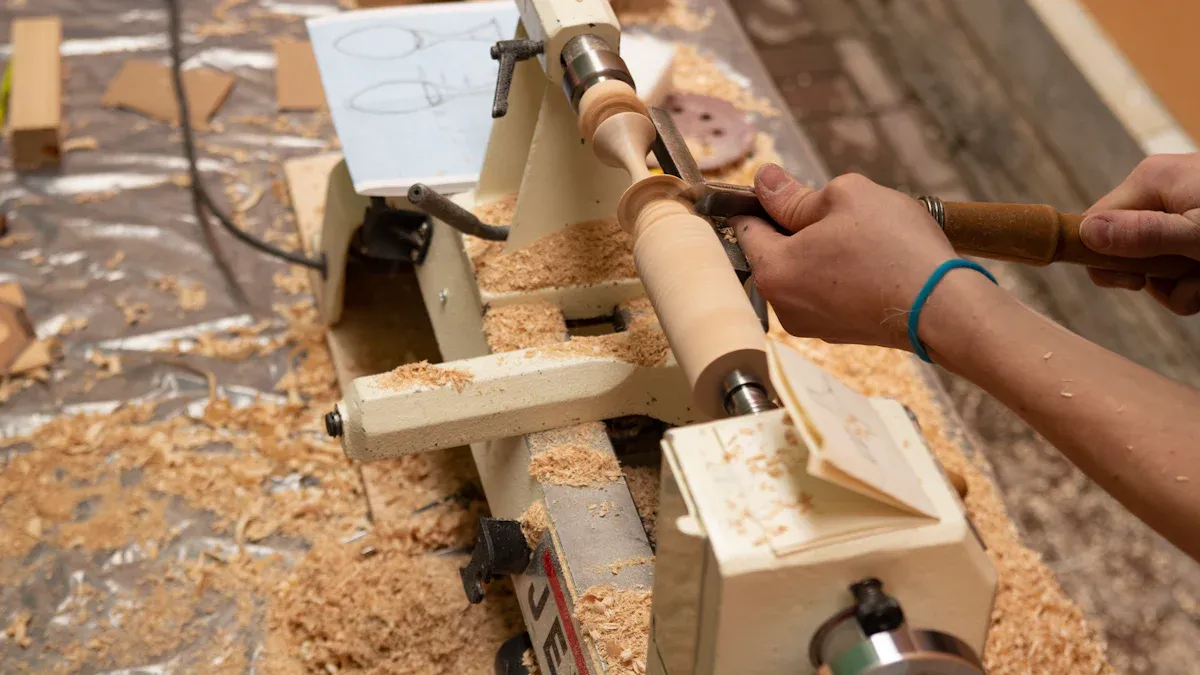

A technical study on wood lathe machines shows that the headstock area measures about 8.96 x 10⁴ mm². This large area helps the machine handle logs safely and efficiently. The headstock uses a chuck to grip the log, while the tailstock uses a center point for support. The electric motor in the headstock provides the power needed to rotate the log and create the turning moment. This setup improves the operational efficiency of the veneer peeling machine and helps you get smooth, consistent veneer.
The knife carriage holds the sharp blade that peels thin layers from the log. You can move the carriage forward as the log gets smaller during peeling. The blade must stay at the right angle and pressure to cut the veneer evenly. If you set the knife carriage correctly, you will get veneer sheets with the same thickness and a smooth surface. The knife carriage is one of the most important components because it directly affects the quality of the veneer you produce.
The clamping system keeps the log tightly in place during the peeling process. You need a strong clamp to stop the log from slipping or shaking. If the log moves, the veneer can become uneven or even tear. Most veneer peeling machines use hydraulic or mechanical clamps. These systems make sure the log stays secure from start to finish. A good clamping system helps you get the best results and protects the other components from damage.
Tip: Always check the clamping system before starting the machine. A loose log can cause defects in the veneer and may damage the knife carriage.
The pressure bar sits close to the knife carriage. You use it to press against the log as the blade peels off the veneer. This bar keeps the log steady and helps control the thickness of each veneer sheet. When you set the pressure bar correctly, you get smooth and even veneer. The pressure bar also reduces vibrations. Less vibration means fewer defects in the veneer.
You can adjust the pressure bar to match the size and hardness of the log. If you work with a softwood log, you may need less pressure. For hardwoods, you often need more force. The right pressure helps the blade cut cleanly without tearing the wood fibers.
Tip: Always check the pressure bar before starting the machine. A worn or loose bar can cause uneven veneer and damage the blade.
The control panel acts as the brain of the veneer peeling machine. You use it to set and monitor all the main functions. Most modern machines have digital control panels with touch screens. You can adjust the speed of the log rotation, the position of the knife carriage, and the pressure bar settings from here.
A good control panel gives you real-time feedback. You see alerts if something goes wrong, such as a jam or a drop in pressure. Some panels let you save settings for different types of logs. This feature saves you time and helps you keep production consistent.
Key features you find on most control panels:
Start and stop buttons
Emergency stop switch
Speed controls for log rotation
Knife carriage adjustment
Pressure bar adjustment
Display for machine status and error messages
Note: Always learn the control panel layout before operating the machine. Quick access to emergency stops can prevent accidents.
Dust collection plays a big role in keeping your workspace clean and safe. When you peel veneer, the process creates a lot of wood dust and small chips. If you let dust build up, it can clog the machine and lower the quality of your veneer. Breathing in wood dust can also harm your health.
Most veneer peeling machines come with built-in dust collection systems. These systems use fans and ducts to pull dust away from the cutting area. The dust then moves into a collection bin or bag. You should empty the dust bin regularly to keep the system working well.
Benefits of a good dust collection system:
Cleaner work environment
Better air quality for you and your team
Less machine downtime from clogs
Improved veneer surface quality
Reminder: Always check and clean the dust collection system after each shift. A blocked system can cause machine failures and health risks.
The outfeed system handles the veneer sheets after the machine peels them from the log. You rely on this system to move the thin wood sheets away from the cutting area quickly and safely. A good outfeed system keeps your production line running smoothly and helps prevent damage to the veneer.
Key Functions of the Outfeed System:
Guides the Veneer: The outfeed system uses rollers, belts, or conveyors to guide the fresh veneer away from the blade. You avoid jams and keep the sheets flat.
Prevents Damage: Thin veneer can tear or wrinkle easily. The outfeed system supports the sheets so you get smooth, usable veneer.
Speeds Up Production: Automatic outfeed systems let you work faster. You do not need to stop the machine to remove each sheet by hand.
Stacks or Sorts Veneer: Some machines include stacking or sorting features. You can organize veneer sheets by size or quality right after peeling.
Tip: Always check the outfeed rollers or belts for dust and debris. Clean parts help you avoid jams and keep the veneer surface clean.
Common Outfeed System Types:
| Type | How It Works | Best For |
|---|---|---|
| Roller Conveyor | Veneer slides over a series of rollers | Fast, continuous production |
| Belt Conveyor | Veneer rides on a moving belt | Thin or delicate veneer sheets |
| Automatic Stacker | Sheets are stacked as they exit | High-volume operations |
You can adjust the speed of the outfeed system to match the peeling speed. If you set the speed too slow, veneer may pile up and wrinkle. If you set it too fast, sheets might tear or fall off the conveyor.
Why the Outfeed System Matters:
You protect the quality of your veneer.
You reduce manual labor and save time.
You keep your production area safer and more organized.
Note: If you notice veneer sheets piling up or getting stuck, stop the machine and clear the outfeed path before restarting. This step prevents damage to both the veneer and the machine.
A reliable outfeed system helps you get the most from your veneer peeling machine. You produce more sheets with fewer defects and less waste.
You start the veneer peeling process by preparing the logs. Proper preparation helps you get high-quality veneer and reduces waste. First, you select logs with the right diameter and minimal defects. You often soak or steam the logs to soften the wood fibers. This step makes the peeling smoother and helps you control the thickness of the peeled veneer.
Researchers have developed advanced models to simulate how wood behaves during peeling. These models use the Material Point Method (MPM) to include wood properties, tool shapes, and even how the wood cracks. Engineers test these models by measuring the forces needed to cut the wood and by watching for cracks called lathe checks. These cracks can affect the surface quality of your veneer.
The models help you choose the best settings for your veneer peeling machine, such as knife angle and pressure bar position.
You can adjust for different wood species, moisture levels, and temperatures.
The models also track how the wood curls and moves after cutting, which helps you avoid defects.
Technical tests show that logs with deep lathe checks and rough surfaces need special attention. For example, rubberwood logs with small diameters often show more cracks and roughness. You need to adjust glue spread rates and pressing conditions to get strong, stable veneer. Using the right amount of glue—about 200 g/m²—gives you the best bond without wasting adhesive.
Tip: Always check the log’s moisture and temperature before peeling. Logs that are too dry or too cold can crack more easily, leading to poor veneer quality.
After preparing the logs, you load them into the veneer peeling machine. You place the log between the headstock and tailstock. The clamping system holds the log tightly in place. This step is important because any movement can cause uneven veneer or even damage the knife.
You adjust the clamps to fit the log’s length and diameter. Hydraulic or mechanical clamps give you a secure grip. If you work with logs of different sizes, you may need to change the clamp settings for each one. A strong clamping system keeps the log steady during peeling and helps you get veneer with even thickness.
Make sure the log is centered in the machine.
Tighten the clamps until the log does not move.
Check the pressure bar and knife carriage positions before starting.
Note: Always inspect the clamps and supports before each run. Loose clamps can cause the log to slip, which may ruin the veneer and damage the machine.
Once you clamp the log, you start the rotation and peeling stage. The headstock motor spins the log at a set speed. The knife carriage moves forward, pressing the blade against the log’s surface. As the log turns, the blade peels off a thin, continuous sheet of veneer. You control the speed and pressure to match the wood type and desired thickness.
The efficiency of this stage depends on the log’s diameter and quality. Studies show that the average veneer recovery rate from rotary peeling is about 54.2%. If you use logs with a larger small-end diameter, you can increase recovery by about 0.6% for every extra centimeter. Logs over 35 cm in diameter often give you more top-quality veneer sheets.
Adjust the speed for each log to get the best results.
Monitor the thickness of the peeled veneer to keep it consistent.
Use the control panel to make real-time changes if needed.
A predictive model can help you estimate how much veneer you will get from each log. Operator choices, such as leaving a larger core, can affect recovery rates. You should always aim for the highest recovery without sacrificing veneer quality.
Tip: Watch for changes in the sound or vibration of the machine. These can signal problems with the log or blade, which may affect the thickness and quality of your veneer.
After you finish the main peeling stage, you need to remove the veneer from the machine. This step is important because it affects the quality and handling of the veneer sheets. You want to keep the sheets flat and smooth. If you do not remove them properly, you may see wrinkles, tears, or folds.
You usually see the veneer come off as a long, continuous sheet. The outfeed system helps guide the veneer away from the blade. You can use rollers, belts, or conveyors to move the veneer to the next station. Some machines have automatic stackers that collect the sheets for you.
Here is how you can manage veneer removal during the peeling process:
Monitor the Outfeed System: Watch the rollers or belts as they move the veneer. Make sure the sheets do not jam or pile up. If you see a problem, stop the machine and clear the path.
Check Sheet Quality: Look at the veneer as it leaves the peeling area. You want to see even thickness and a smooth surface. If you notice defects, adjust the knife or pressure bar.
Stack or Sort Sheets: Use the stacker or sort the veneer by hand. Place the sheets flat to avoid bending or cracking. You can sort the veneer by size or grade if needed.
Prepare for Further Processing: After removal, you may need to trim the veneer or dry it. Some factories use special dryers to lower the moisture content before gluing or pressing.
Tip: Always keep your hands and tools away from moving parts during veneer removal. Safety comes first.
You can see the main steps in the table below:
| Step | What You Do | Why It Matters |
|---|---|---|
| Monitor Outfeed | Watch veneer move off the machine | Prevent jams and damage |
| Check Quality | Inspect veneer for defects | Catch problems early |
| Stack or Sort | Organize veneer sheets | Keep sheets flat and safe |
| Prepare for Next Use | Trim or dry veneer | Ready for gluing or pressing |
You play a key role in keeping the veneer in good condition after peeling. Careful removal helps you get the most value from each log and keeps your production line running smoothly.
When you look at spindle veneer peeling machines, you see a complex structure built for heavy-duty work. These machines include a large chuck, a sturdy knife frame, and a powerful transmission system. The design covers a big area and handles large logs with ease. You find that the machine’s structure matches industry standards for processing big logs, but it also means higher costs and more maintenance.
Here is a table that compares the main structure features of spindle veneer peeling machines with industry standards:
| Metric | Spindle Veneer Machine Characteristics | Industry Standard Comparison / Implications |
|---|---|---|
| Equipment Structure | Complex structure including chuck, knife frame, transmission; large volume and area | Typical for spindle veneer machines designed for large diameter logs; complexity leads to higher cost and maintenance |
| Production Efficiency | High efficiency, suitable for mass production; downtime needed for chuck adjustment during log replacement | Aligns with industry expectations prioritizing precision and capacity over continuous operation |
| Cost and Maintenance | Higher equipment cost; complex maintenance especially for chuck and transmission system | Matches industry norms for spindle veneer machines requiring sufficient budget and scale |
| Machining Accuracy | High machining accuracy | Consistent with industry standards for handling large diameter logs with precision |
| Operational Impact | Downtime due to chuck adjustments may affect continuous production | Industry acknowledges trade-off between precision and continuous operation in spindle veneer machines |
You can see that spindle veneer peeling machines focus on accuracy and capacity. You need to plan for regular maintenance, especially for the chuck and transmission.
You operate spindle veneer peeling machines with several advanced features that boost production rates. These machines use automatic hydraulic double rotary chucks, which make log feeding faster than single chucks. You save time because you do not need to stop as often to adjust the log.
You also benefit from up and down hydraulic pressure bars. These bars keep the knife gap steady, even when the log diameter changes. This means you get veneer sheets with even thickness every time. Frequency converters let you adjust the rotary cutting speed, so you can match production needs and control veneer quality.
Here are some key operational features:
Automatic double rotary clamping logs with advance and retreat clips help you feed and shift logs quickly.
A strong motor gives you high peeling speeds, which is great for large-scale wood processing.
CNC touch screen thickness adjustment and high-quality electrical parts, like Taiwan Delta PLC and Schneider components, make your work precise and efficient.
You notice that these features work together to improve feeding speed, cutting accuracy, and overall efficiency. Spindle veneer peeling machines help you meet high production demands while keeping quality high.
Tip: Always check the hydraulic systems and control panels before starting your shift. This helps you avoid unexpected downtime.
You use spindle veneer peeling machines in many wood processing industries. These machines handle large logs and produce high-quality veneer sheets for plywood, furniture, and construction materials. You can also process small-diameter logs, such as rubberwood, to make laminated veneer lumber (LVL).
Case studies show that spindle veneer peeling machines work well with fast-growing woods like sengon and jabon. You can produce 3 mm thick veneers and use them in LVL products. The quality of the veneer depends on how you set the peeling parameters. For example, the number of lathe checks affects glue bond strength and bending strength in LVL.
You also see that higher pressing temperatures and lamination pressures improve the final product. When you use spindle veneer peeling machines, you can adjust these settings to get the best results for each wood type.
Spindle veneer peeling machines help you turn logs into valuable products for many industries. You get strong, reliable veneer sheets that meet strict quality standards.
When you look at spindleless veneer peeling machines, you notice a design that stands out for its flexibility and efficiency. These machines do not use a central spindle, so you can load logs of many shapes and sizes, even those that are bent or irregular. The parallel roller system supports the log and keeps it steady as you peel. This setup lets you produce veneer sheets up to 4 mm thick, which is much thicker than what traditional machines can handle.
You benefit from several technical features that make your work easier and more reliable:
Double roller drive gives you stable and uniform peeling.
Taiwan HIWIN linear guide rails help you get smoother and more even veneer sheets.
Japanese bearings keep the machine running smoothly and quietly.
The T10 reducer reduces vibration and noise, making your workspace more comfortable.
Hydraulic knife holders and automatic knife adjustment systems save you time and reduce manual labor.
The table below shows some important specifications:
| Feature | Specification/Advantage |
|---|---|
| Max. Log Diameter | 550 mm |
| Max. Log Length | 1500-1800 mm |
| Knife Size | 1500x180x16 mm or 1800x180x16 mm |
| Motor Power | 11 kW (Double/Single Roller) |
| Hydraulic Pump Power | 5.5 kW |
| Log Support System | Supports bent wood, automatic knife gap adjust |
| Air Cooling System | Reduces oil temperature, longer work time |
| Total Power | 27.5 kW |
| Weight | 4200-5200 kg |
You will find that spindleless veneer peeling machines use less energy and create less waste. The design also makes maintenance easier, with fewer parts that wear out. You can customize the veneer thickness to match your needs, which helps you get the most out of each log.
Operating spindleless veneer peeling machines is straightforward and efficient. You place the log between the rollers, and the machine grips it with a round chuck. The log rotates at high speed while a sharp cutterhead peels off thin layers of wood. You can adjust the knife gap automatically, which helps you keep the veneer thickness consistent.
You will notice that the double roller drive keeps the log steady, even if it is not perfectly straight. The hydraulic knife holder lets you change the blade position quickly, so you spend less time on setup. Automatic knife adjustment with a double convex rail design improves your accuracy and speed. You do not need to stop the machine as often, which means you can produce more veneer in less time.
Some machines include air cooling systems to keep the hydraulic oil at the right temperature. This feature lets you run the machine longer without overheating. You will also find that the machine runs quietly and smoothly, thanks to quality bearings and reducers.
Tip: Always check the rollers and knife holder before starting your shift. Clean and well-maintained parts help you avoid jams and keep your veneer quality high.
You can use spindleless veneer peeling machines in many wood processing industries. These machines work well with different wood species and can handle both softwood and hardwood logs. You will see them used to make plywood, furniture panels, and decorative veneers.
The advanced technology in spindleless veneer peeling machines ensures that you get consistent veneer thickness and high surface quality. You can produce large quantities of veneer quickly, which helps you lower labor costs and increase your output. The machines also let you adjust for different thicknesses, so you can meet a wide range of production needs.
Here is a table that highlights the main benefits:
| Feature | Description |
|---|---|
| High Precision | Consistent veneer thickness and quality, meeting industry standards |
| Increased Efficiency | High speed and accuracy for large quantity production with less labor |
| Cost-effectiveness | High productivity at low cost, with reduced maintenance |
| Flexibility | Handles various wood species and thicknesses for diverse production needs |
Many factories have installed spindleless veneer peeling machines to improve flexibility and safety. You will notice fewer jams and less material loss during operation. Automation features, such as intelligent stacking, help you save on labor costs. You can rely on these machines to deliver stable and efficient veneer quality, even when working with logs of different hardness.
Note: If you want to maximize your material use and reduce waste, spindleless veneer peeling machines are a smart choice for your production line.
When you compare spindle and spindleless veneer peeling machines, you notice clear differences in performance. Spindle machines give you high precision and stability, especially when you work with large, straight logs. The spindle holds the log firmly at both ends, so you get uniform veneer thickness and fewer surface defects. This setup works best for high-quality veneer production.
Spindleless machines, on the other hand, offer more flexibility. You can process smaller or irregular logs that might not fit well in a spindle machine. The rollers grip the log from the sides, so you can peel even bent or knotty wood. However, you may see more variation in veneer thickness and surface quality, especially if the log has many defects. Still, modern spindleless machines use advanced controls to help you keep the veneer as even as possible.
Tip: If you need top-grade veneer for furniture or decorative panels, choose a spindle machine. For mixed log sizes or lower-grade veneer, spindleless machines give you more options.
Efficiency plays a big role in your production process. Spindleless veneer peeling machines stand out for their higher net veneer recovery rate. You can recover between 42% and 55% of the log volume as usable veneer. Spindle machines, or traditional sawn board processes, usually recover less than 20%. This means you waste less wood and get more product from each log with spindleless machines.
Here is a table that shows the main efficiency metrics:
| Efficiency Metric | Spindleless Veneer Peeling Process | Spindle Veneer Peeling Process / Traditional Sawn Boards |
|---|---|---|
| Net Veneer Recovery Rate | 42% to 55% of log volume | Less than 20% of log volume |
| Veneer Grade Quality | Mostly limited to D-grade veneers | Lower recovery and quality due to defects and sawing |
| Common Defects Affecting Grade | Compression, surface roughness, grain breakout | Wane, heart shake, pith, knots |
| Impact Factors | Log diameter and defects influence recovery | Log defects reduce potential recovery |
You see that spindleless machines help you use more of each log, especially when you work with smaller or lower-quality logs. However, the veneer grade is often lower, with more D-grade sheets. Spindle machines may give you fewer sheets, but the quality is usually higher.
Choosing the right machine depends on your production needs. If you run a factory that handles large, straight logs and you want high-quality veneer, a spindle machine fits your needs. You get smooth, even sheets that work well for plywood, furniture, and decorative uses.
If you process a mix of log sizes or want to maximize wood use, spindleless machines offer more flexibility. You can peel logs that are too small or irregular for spindle machines. This makes spindleless machines a good choice for mills that handle plantation wood, fast-growing species, or logs with many defects.
Use spindle machines for:
High-end veneer products
Large-diameter logs
Projects that demand tight thickness control
Use spindleless machines for:
Mixed or small-diameter logs
High recovery rates
Lower-grade veneer or core layers in plywood
Note: Always match your machine choice to your log supply and product goals. The right fit helps you boost efficiency and reduce waste.
When you choose between spindle and spindleless veneer peeling machines, you must consider how much time and effort you will spend on maintenance. Each type has its own needs and challenges. Good maintenance keeps your machine running smoothly and helps you avoid costly breakdowns.
Spindle Veneer Peeling Machine Maintenance
Spindle machines have more moving parts. You need to check the spindle, chucks, and transmission system often. These parts handle heavy loads and can wear out quickly if you do not keep them clean and well-lubricated. The spindle and chuck must grip the log tightly, so you should inspect them for wear or damage after each shift.
Daily Tasks:
Clean the spindle and chuck to remove wood dust and chips.
Lubricate all moving parts.
Check for loose bolts or worn bearings.
Weekly Tasks:
Inspect the transmission system for signs of wear.
Test the hydraulic system for leaks.
Examine the knife carriage and pressure bar for alignment.
Tip: Replace worn spindle parts right away. Delaying repairs can lead to bigger problems and longer downtime.
Spindleless Veneer Peeling Machine Maintenance
Spindleless machines have fewer complex parts. You will spend less time on maintenance, but you still need to care for the rollers, knife holder, and hydraulic systems. The rollers must grip the log evenly, so you should clean them and check for flat spots or cracks.
Daily Tasks:
Wipe down the rollers and knife holder.
Check the hydraulic oil level.
Remove dust from the control panel and sensors.
Weekly Tasks:
Inspect the bearings and guide rails.
Test the air cooling system if your machine has one.
Adjust the knife gap and check for sharpness.
Note: Keep the rollers and knife sharp. Dull or dirty parts can cause uneven veneer and machine jams.
Maintenance Comparison Table
| Maintenance Aspect | Spindle Machine | Spindleless Machine |
|---|---|---|
| Parts to Maintain | Spindle, chuck, transmission | Rollers, knife holder |
| Maintenance Frequency | Higher | Lower |
| Downtime Risk | More frequent if neglected | Less frequent |
| Skill Level Needed | Higher | Moderate |
| Common Issues | Spindle wear, hydraulic leaks | Roller wear, knife dullness |
You will notice that spindle machines need more skilled workers for repairs. Spindleless machines are easier to maintain, so you can train your team faster.
Reminder: Always follow the manufacturer’s maintenance schedule. Regular checks help you catch small issues before they become big problems.
If you want less downtime and easier upkeep, spindleless machines offer a clear advantage. If you choose spindle machines, plan for more frequent checks and skilled maintenance. Good care extends the life of your equipment and keeps your veneer quality high.
When you select a veneer peeling machine, you need to consider several important factors. Start by looking at the size of the logs you plan to process. Machines designed for large-diameter logs (over 20 cm) work best for high-precision tasks, while smaller machines handle logs under 20 cm and make better use of leftover cores. You should also think about the type of wood. Some machines perform better with hardwoods, while others suit softwoods.
You can use resonant acoustic measurements to check wood stiffness and quality before processing. This helps you sort logs and match them to the right machine. By doing this, you improve both veneer yield and product quality. Excluding the central core during peeling can also boost the mechanical properties of your final products, especially in laminated veneer lumber.
| Aspect | Spindle Veneer Peeling Machine | Spindleless Veneer Peeling Machine |
|---|---|---|
| Suitable Log Size | Large diameter (>20 cm) | Small diameter or cores (<20 cm) |
| Machining Accuracy | High | Medium |
| Equipment Structure | Complex, large | Simple, compact |
| Timber Utilization | High (more core waste) | Higher (better use of small logs/cores) |
Tip: Always check the maximum log diameter your machine can handle. This ensures you do not overload the equipment.
You should match your machine choice to your production goals. If you focus on plywood manufacturing, you need a machine that delivers consistent sheet thickness and high surface quality. Spindle machines give you better results with large, straight logs, making them ideal for top-grade veneer. Spindleless machines work well for mixed log sizes and can process irregular or smaller logs, which helps you maximize material use.
Industrial data shows that log thickness ranges from 13 to 45 cm are common for most machines. The intake capacity of your machine must fit your log supply. You should also consider the wood species and moisture content, as these affect drying time and final veneer quality. By matching your machine to your application, you reduce waste and improve efficiency.
Note: Always review your production needs and log supply before investing in a new machine.
You can boost your production efficiency and minimize maintenance with a few simple steps:
Sort Logs by Size and Quality: Use acoustic tools or visual checks to group logs. This helps you set up the machine for each batch and reduces downtime.
Monitor Machine Settings: Adjust knife gap, pressure, and speed for each wood type. Small changes can lead to big improvements in veneer quality.
Maintain Equipment Regularly: Clean dust collectors, lubricate moving parts, and inspect blades daily. Well-maintained machines last longer and produce better veneer.
Track Production Data: Record veneer thickness, moisture, and drying times. Large-scale data collection helps you spot trends and optimize your process.
️ Pro Tip: Regularly check the rollers and knife sharpness. Sharp, clean parts prevent jams and keep your veneer sheets smooth.
By following these tips, you keep your veneer peeling machine running smoothly and get the most out of every log.
You often face problems when logs are not straight or have knots, cracks, or uneven diameters. These irregularities can make peeling difficult and reduce the quality of your veneer. Logs with bends or twists may not rotate smoothly. This can cause the veneer to come out uneven or even tear.
Common log irregularities include:
Bent or curved logs
Knots and branches
Cracks or splits
Varying diameters
Tip: Always inspect each log before loading it into the machine. Remove loose bark and trim ends if needed. Sorting logs by size and straightness helps you get better results.
A log with many defects may produce more waste. You may need to adjust the pressure bar or knife angle to handle these logs. If you notice the log wobbling during rotation, stop the machine and check the clamping system.
Veneer defects can lower the value of your product. You might see splits, rough surfaces, or uneven thickness. These problems often come from poor log quality, incorrect machine settings, or dull blades.
Watch for these common veneer defects:
| Defect Type | What You See | Possible Cause |
|---|---|---|
| Splits/Cracks | Long breaks in the veneer | Dry logs, high pressure |
| Rough Surface | Uneven or fuzzy texture | Dull blade, wrong angle |
| Uneven Thickness | Thick and thin spots | Poor knife adjustment |
| Lathe Checks | Small cracks on the surface | Fast peeling, dry wood |
| Wrinkles/Folds | Wavy or bent sheets | Slow outfeed, loose clamping |
Alert: If you see many defects, check your machine settings right away. Adjust the knife gap, pressure bar, or speed to fix the problem.
You can reduce defects by using sharp blades and keeping the machine clean. Always match your settings to the wood type and moisture level.
Regular maintenance keeps your veneer peeling machine running well. You should clean, inspect, and lubricate parts every day. Neglecting maintenance can lead to breakdowns, poor veneer quality, or even accidents.
Key maintenance tasks:
Clean dust and chips from the machine after each shift.
Check the sharpness of the knife and replace it if dull.
Inspect rollers, clamps, and bearings for wear.
Lubricate moving parts as recommended by the manufacturer.
Test the hydraulic system and refill oil if needed.
Note: Keep a maintenance log. Write down any repairs or part replacements. This helps you spot patterns and prevent future issues.
If you hear strange noises or see vibration, stop the machine and inspect it. Quick action can prevent bigger problems. Well-maintained machines last longer and produce better veneer.
You now understand how a veneer peeling machine transforms logs into thin, valuable veneer sheets. Each component, from the knife carriage to the outfeed system, plays a role in producing quality veneer. Spindleless machines stand out by delivering higher veneer recovery rates and better efficiency, especially with plantation hardwoods. Comparative studies confirm that spindleless technology overcomes common spindle machine issues, such as larger peeler cores and grip failures. For more details on optimizing veneer production, explore technical guides or industry research.
You use a veneer peeling machine to turn logs into thin sheets of wood. These sheets become plywood, furniture panels, or decorative surfaces. The machine helps you get uniform thickness and high-quality veneer quickly.
You select a spindle machine for large, straight logs and high-quality veneer. You pick a spindleless machine for smaller or irregular logs and higher recovery rates. Always match your machine to your log supply and production goals.
You should clean and inspect your machine daily. Lubricate moving parts and check blades for sharpness. Follow the manufacturer’s maintenance schedule. Regular care helps you avoid breakdowns and keeps your veneer quality high.
You can use both hardwoods and softwoods. Straight, defect-free logs give you the best results. Plantation species like rubberwood, sengon, and jabon work well in spindleless machines. Always check log moisture and quality before peeling.
You may see uneven thickness, splits, or rough surfaces. Log defects, dull blades, or incorrect settings often cause these issues. You can reduce problems by sorting logs, using sharp knives, and adjusting machine settings for each batch.
Yes, you can adjust veneer thickness using the control panel. Modern machines let you change settings while the machine runs. Always monitor the results and make small changes to keep veneer sheets consistent.
You stay safe by following all safety rules. Use guards, emergency stops, and keep hands away from moving parts. Wear protective gear and check the machine before each shift. Training and regular checks help prevent accidents.
You collect wood chips and dust using the machine’s dust collection system. You can recycle or use waste for energy or other wood products. Keeping your work area clean helps you run the machine smoothly and safely.
