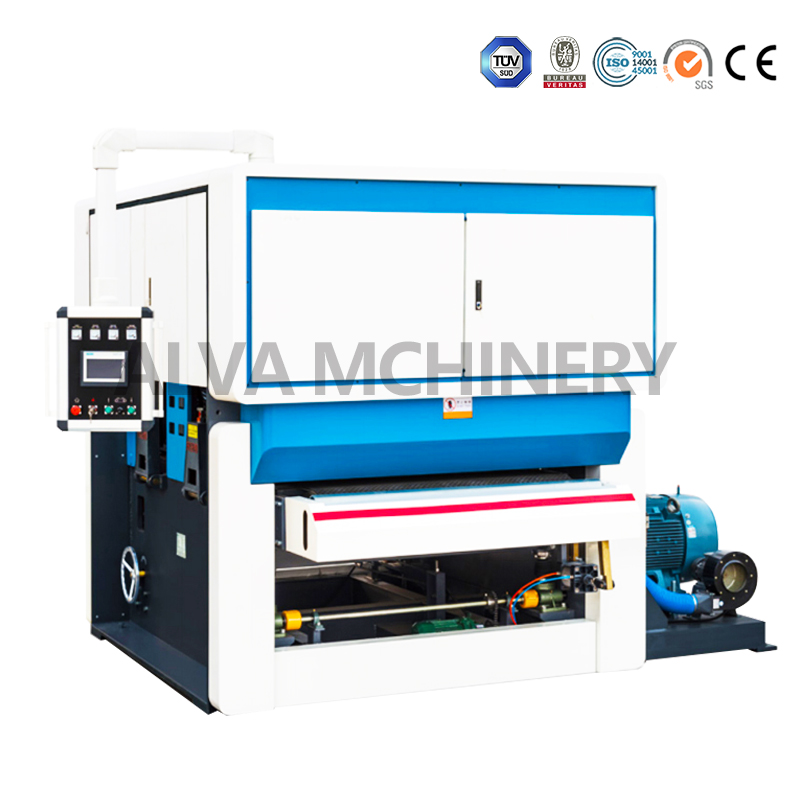

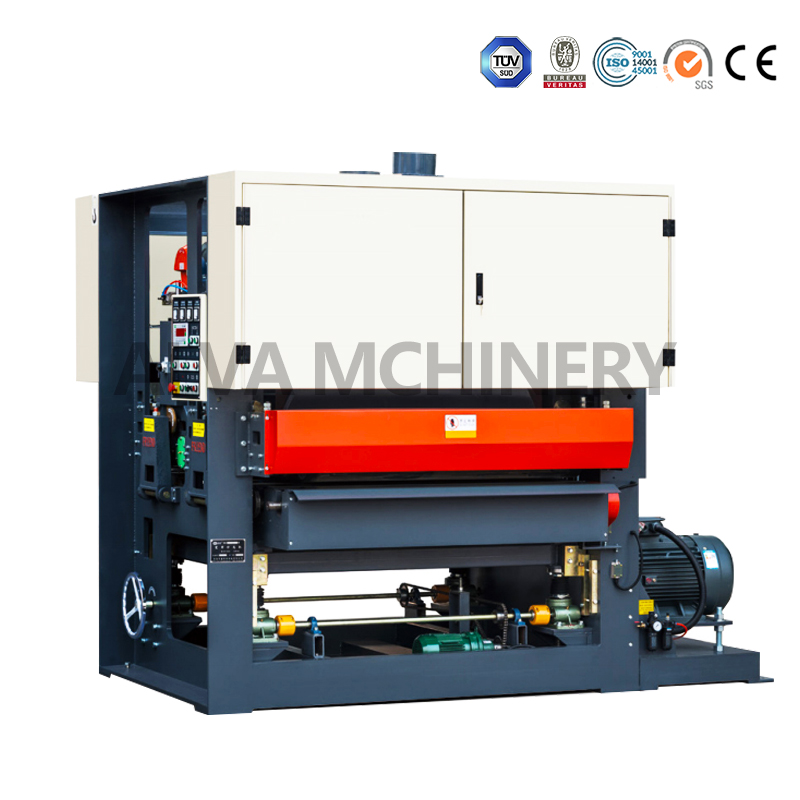

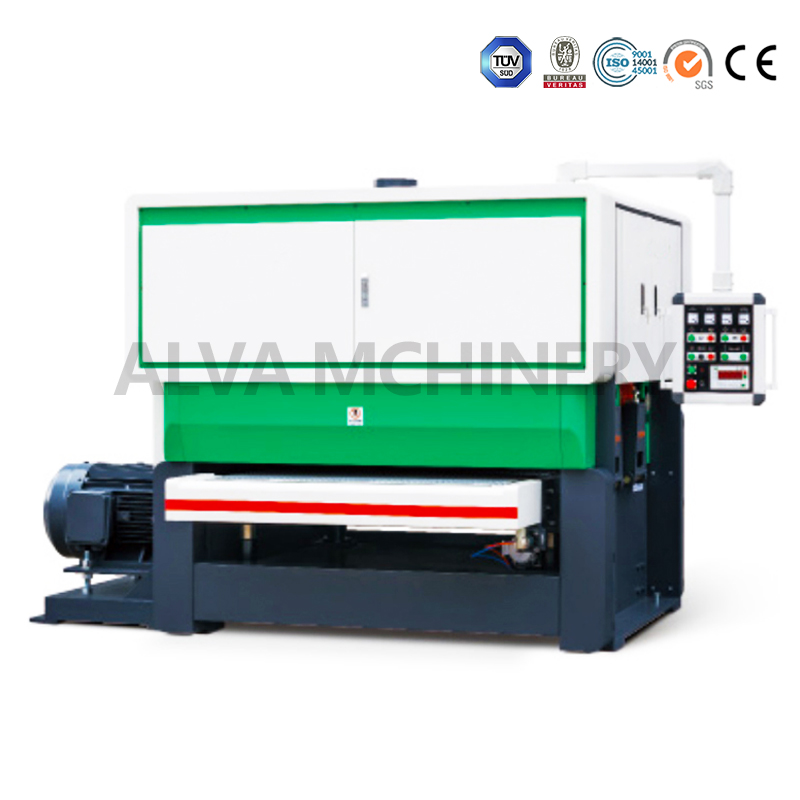

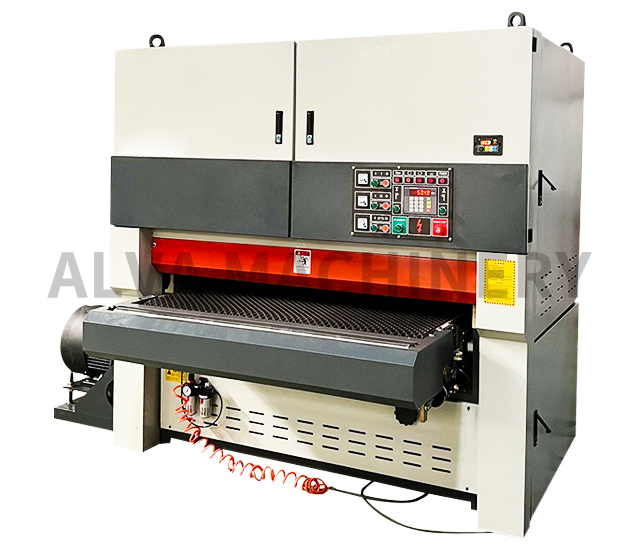

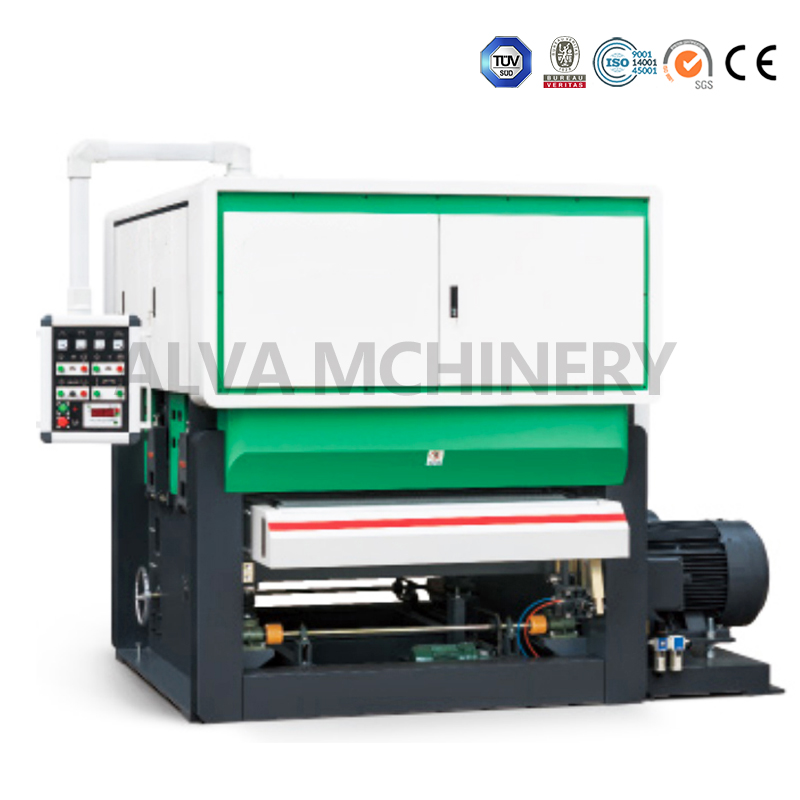

Industrial Calibrating Sanding Machine

Sanding machine is a kind of equipment specially used for surface treatment of various types of boards. It is used to grind and polish the wood surface to make it smoother and more delicate. It is suitable for furniture manufacturing, woodworking crafts and other industries. The characteristics of sanding machine are high efficiency, convenience, multi-function and precise control. It can improve work efficiency and quality. It is suitable for large-scale and small-batch production. It is suitable for wood boards, integrated materials, artificial boards, insulation boards, PET large boards, artificial stones, metal plate deburring and other fields.

Quantity:
Availability:





Inquire Add to Basket

Related Products

Product Description

Alva sanding machine is a woodworking machine or industrial equipment that grinds, polishes, and sands the surface of various materials. It can be used in furniture manufacturing, wood product processing and other industries. It removes the excess part of the surface of the board through grinding to make the surface flat and smooth to achieve the ideal sanding effect.

/ Product advantages /

01

Control panel

Touch screen control panel, simple and clear self-reset control button, intelligent temperature controller with high control accuracy, complete functions, simple and clear.

Electrical components

Electrical components are made of well-known brands, safe and durable, and quality is guaranteed.

Industrial Calibrating Sanding Machine

02

Tapered pulley

The traditional casting process design method is used to design the casting process of the pulley gray iron.

High-quality reducer

The conveyor belt stepless speed regulation motor is 0.5-5m/min, and the grinding speed can be controlled according to the grinding requirements.

03

All-copper core motor

The national standard all-copper core motor is used to provide strong power for the machine.

Reinforced body

The platform is made of thickened international channel steel, the frame structure is stable, the whole machine is sprayed with plastic, it is sturdy and beautiful, not easy to rust, and has a longer service life.

/ Product Parameter /

Name	Unit	Range
Maximum working width	mm	1300
working thickness	mm	2-100
Working Length	mm	2750
working accuracy	mm	±0.1MM
Sand belt size	mm	2620*1330
Sand belt speed		22.5
Automatic feeding system: variable frequency	Month/Minute	6-35
Automatic feeding system motor	kw	7.5
Total powver	kw	63
Air pressure	MPA	0.55
Gas consumption	M3/minute	0.6
Sawdust collection wind speed		25-30days
Machine dimensions	mm	200030802440
Machine weight	kg	7000
