Industrial Rotary Card Cutting Machine

The working principle of the Alva rotary cutter is to use rollers to clamp the logs and drive them to rotate. At the same time, the knife bed carries the rotary cutter to feed along the axial direction of the log. The rotary cutter gradually peels the logs into continuous thin wood slices in the relative movement with the logs. It is mainly used in the production industries of plywood and veneer laminated materials. Various logs such as poplar, birch, pine, etc. can be peeled into veneers of different thicknesses. These veneers are important raw materials for manufacturing plywood, furniture, decorative materials, etc.

Quantity:
Availability:





Inquire Add to Basket

Related Products

Product Description

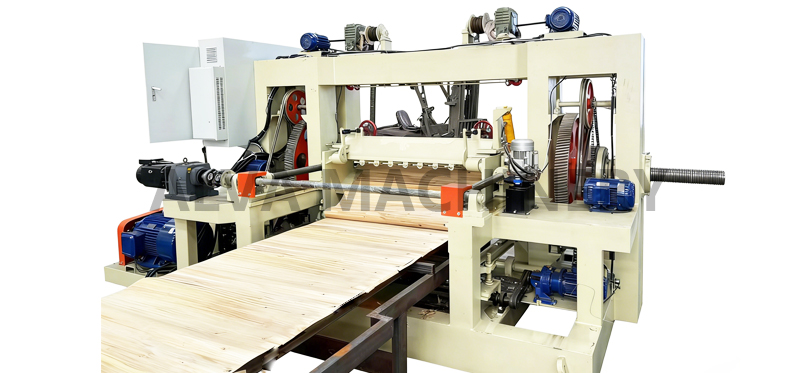

The spindle peeling machine is a kind of equipment specially used for peeling large-diameter wood. It can process wood with a diameter of up to 1500mm. The machine adopts Taiwan Delta inverter and French Schneider electrical components to ensure the stability of the machine operation. The overall structure is welded with Q235B steel and channel steel, which is sturdy and durable.

In addition, the spindle peeling machine has high-precision peeling ability, fast operation speed, and can realize the flat processing of the single board surface. The small-diameter wood conveying system can be installed at the bottom of the machine to realize the automatic thickness adjustment system. The peeling spindle can be equipped with a spindle support frame to realize different processing width adjustments from 2ft to 8ft, which minimizes the investment cost and achieves the effect of one machine for multiple uses.

/ Product advantages /

01

The motor is powerful and can provide high torque output. It can easily drive the log clamped by the chuck to rotate at high speed to ensure the stability of the peeling process.

Industrial Rotary Card Cutting Machine

02

Accurate positioning: It can accurately grasp both ends of the log to achieve automatic centering, ensure that the log is on the central axis of the machine when rotating, and ensure that the thickness of the peeled veneer is uniform.

Strong stability: The frame and base are welded with high-strength steel, which can provide stable support for the entire machine, effectively resist cutting force and vibration during peeling, and ensure the stability of the machine

/ Product Parameter /

Mocel	ALVA AFT VSVP
max Diametar for log	Φ1600 mm
peeling length	1300 mm
peeling thickngss	0.5-3mm
machine dimension	470022002400mm
mmachine weigiht	7000kg
min motor	45kw
quick go forward & back mctor	7.5kw
knife motor	1.1kw
hydraulic motor	0.75kw
pressing roller motor	1.1kw
wood log loader motor	1.1kw
