Semi-Automatic Hot Press

Semi-Automatic Hot Press is the core equipment for medium-sized wood-based panel factories, with the core positioning of "balancing efficiency and flexibility, optimizing man-machine collaboration".It adopts the operation mode of "manual-assisted blank assembly and feeding + automatic pressing and temperature control", and is suitable for the mass production of standardized plywood and decorative wood-based panels.It can not only improve production efficiency, but also retain the flexible adjustment space for special processes.

Availability:

Quantity:



Inquire Add to Basket

Related Products

Product Description

/ Company Profile /

Shandong Alva Machinery Co., Ltd. has focused on the woodworking machinery field for 30 years. Adhering to the corporate tenet of "Creating value for customers and benefits for partners", the company takes "Product quality is produced, not inspected" as its core business philosophy. Every product undergoes research and development, practical application and strict quality inspection.

With reliable quality, its products have passed multiple international authoritative certifications including CE and SGS, and are sold well in both domestic and foreign markets. They not only occupy a significant position in the domestic woodworking machinery sector, but also successfully completed the installation and commissioning of veneer peeling machine production lines in Vietnam and other regions, helping local enterprises enhance their production capacity and market competitiveness.

Meanwhile, the company has established a comprehensive service system, providing services such as overseas equipment installation and commissioning, operator training, and 24-hour online consultation. Both the whole machine and key components are covered by warranty, with the after-sales team responding within 48 hours. In addition, the company offers product customization and personalized packaging services to fully meet the needs of customers at home and abroad.

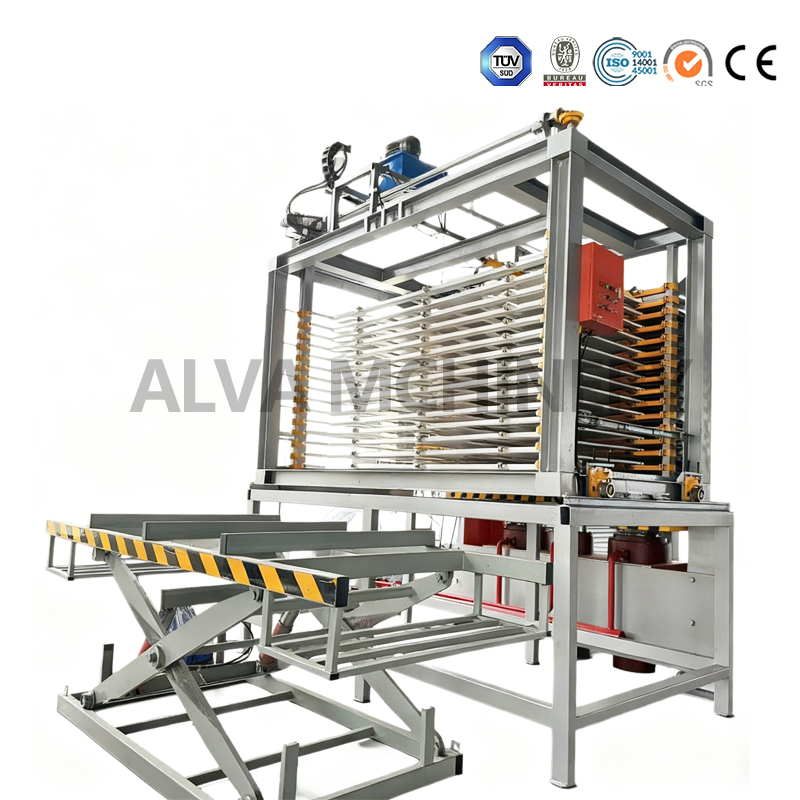

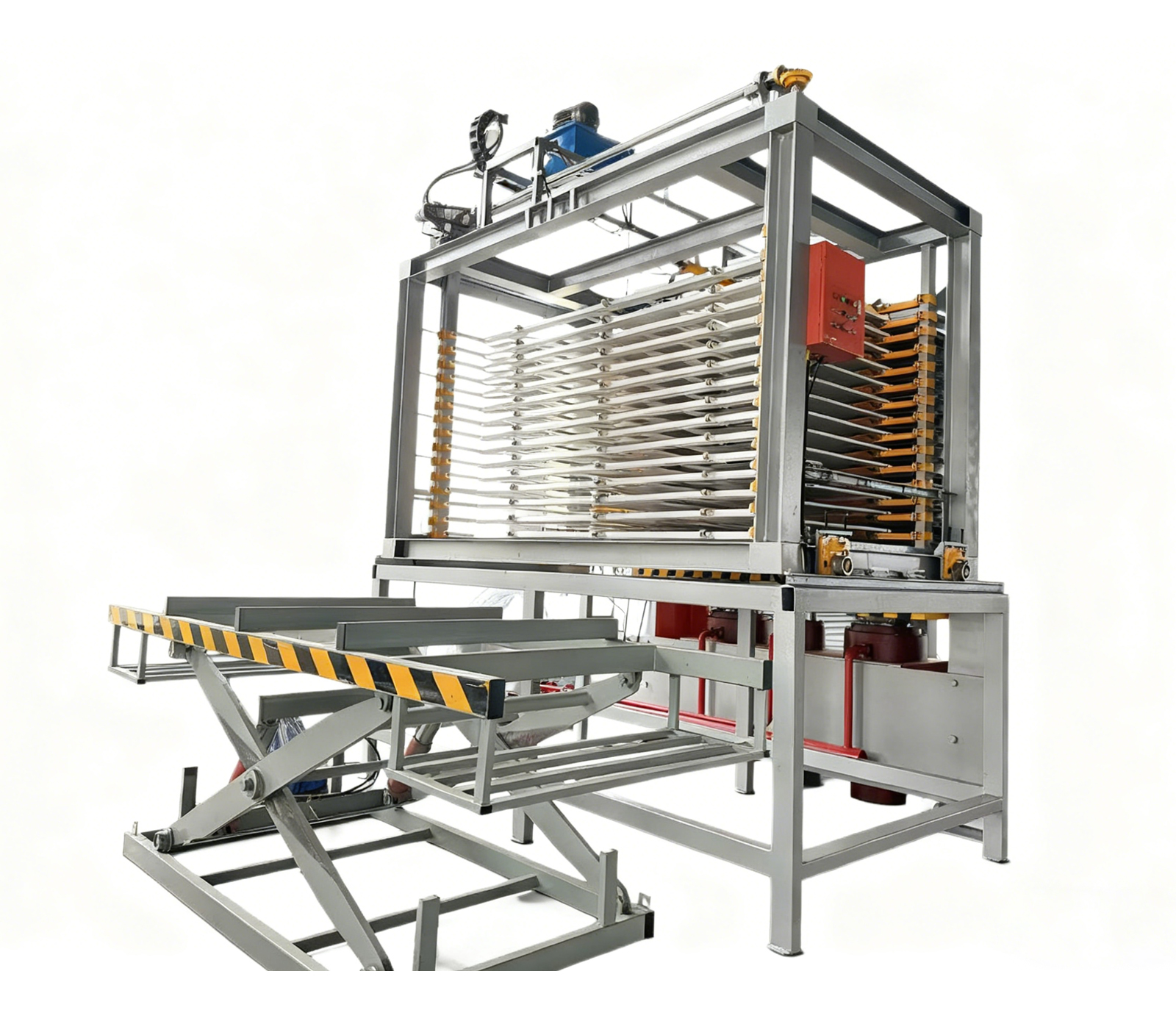

/Product Image Display/

/Product Description/

Semi-Automatic Hot Press is the core equipment for medium-sized wood-based panel factories, with the core positioning of "balancing efficiency and flexibility, optimizing man-machine collaboration".

It adopts the operation mode of "manual-assisted blank assembly and feeding + automatic pressing and temperature control", and is suitable for the mass production of standardized plywood and decorative wood-based panels.

It can not only improve production efficiency, but also retain the flexible adjustment space for special processes.

/Product Advantages/

Easy Operation, Low Threshold: Adopting a mechanical linkage pressing structure with intuitive knob-type parameter adjustment, no complex programming is required. Operators can independently complete the entire process of feeding, pressing and unloading after 1-2 hours of training, greatly reducing labor costs.

Stable Structure, Simple Maintenance: The machine body is welded with Q235 steel plates, and the hot pressing plate is precision ground with 45# steel. The surface flatness error is ≤0.2mm/m, and the core components are reduced to 60% of that of traditional equipment. Daily maintenance only requires cleaning the plate and checking the hydraulic oil level, reducing maintenance costs by 40%.

Flexible Adaptation, Economical Energy Consumption: It supports the pressing of plates with thickness of 3-40mm, and the hot pressing temperature can be adjusted from 80℃ to 160℃. Adopting a honeycomb heat conduction structure, the energy consumption is 20% lower than that of similar equipment. A single machine covers an area of only 3.5㎡, suitable for narrow production spaces.

/Product Advantages/

/Production Process/

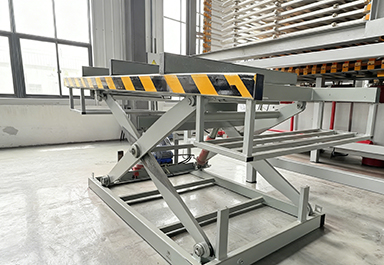

Blank Assembly & Feeding : After completing the plate blank assembly manually, push the blank onto the manual push-pull material rack supporting the equipment. Ensure the blank is centered through the rack positioning device, then push the rack to the designated position in the hot pressing chamber.
Intelligent Parameter Calling: Retrieve the preset process parameters (10 groups of common parameters built-in) via the 7-inch touch screen, confirm the hot pressing temperature (100-180℃), pressure (8-12MPa) and pressure holding time (40-180s), and the system will automatically activate the glue heat preservation early warning.
Automatic Trigger Pressing : When the material rack is in place, the photoelectric sensor device feeds back a signal. The system automatically closes the protective door and starts the pressing process, sequentially completing the actions of pressure application, pressure holding and pressure relief without manual intervention throughout the process.
Auxiliary Unloading : After the pressing is completed, the system automatically unlocks the material rack. The operator manually pulls out the rack, transfers the finished plates to the conveyor roller, and sends them to the next cooling process.
Equipment Self-inspection : The operator confirms the production data of the current batch on the touch screen, cleans the residual glue on the material rack. The system automatically prompts the hydraulic oil filtering status, and the operator completes the daily inspection and records it.
