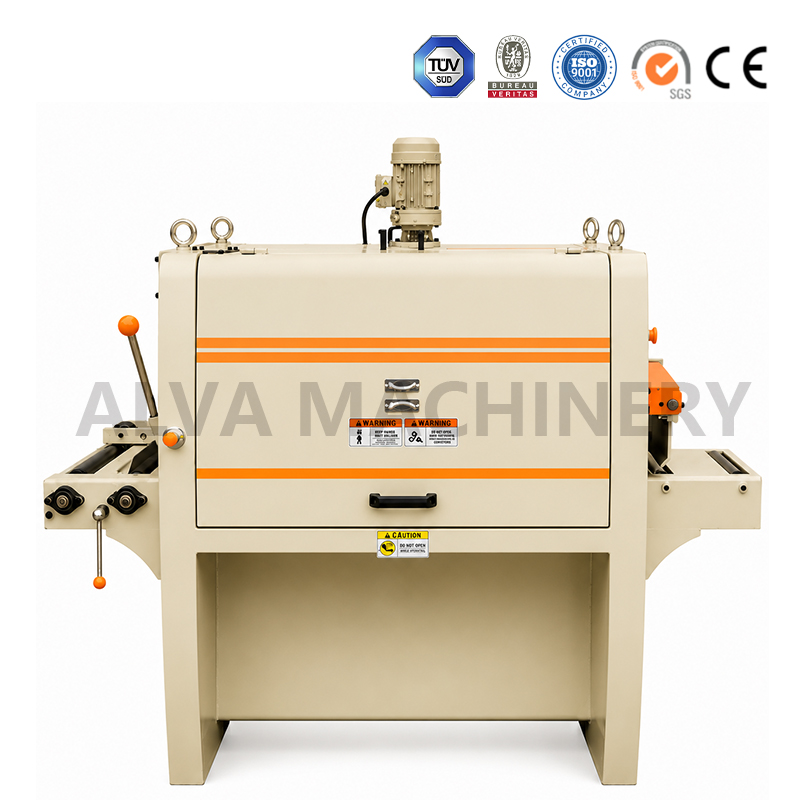

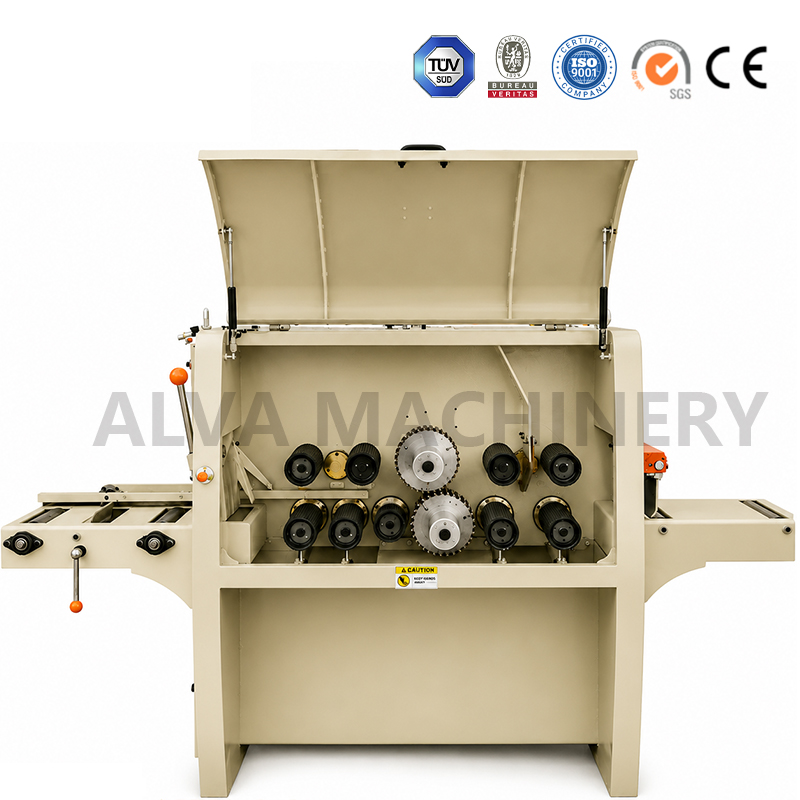

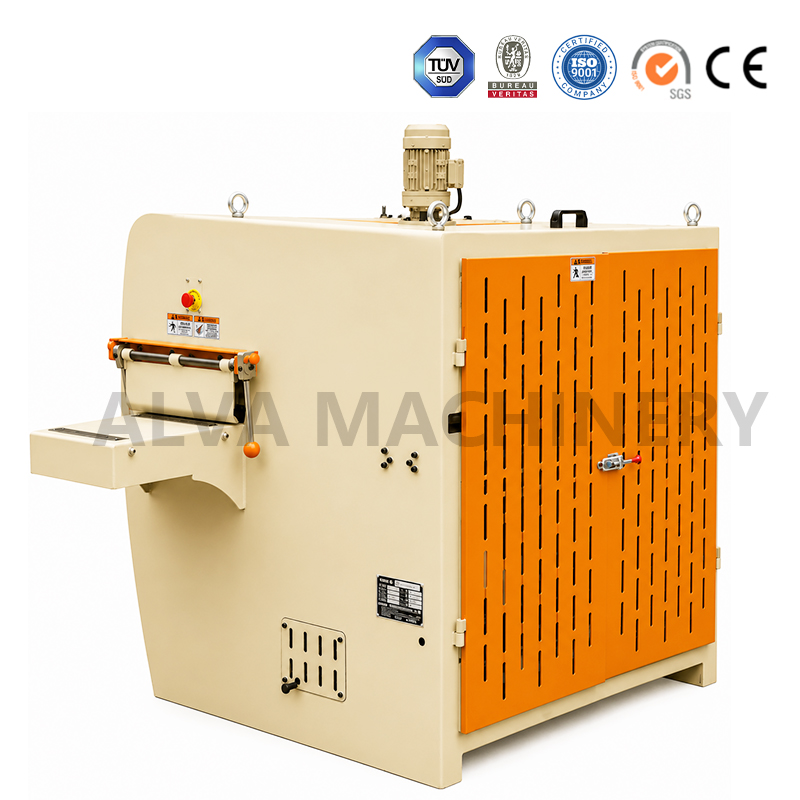

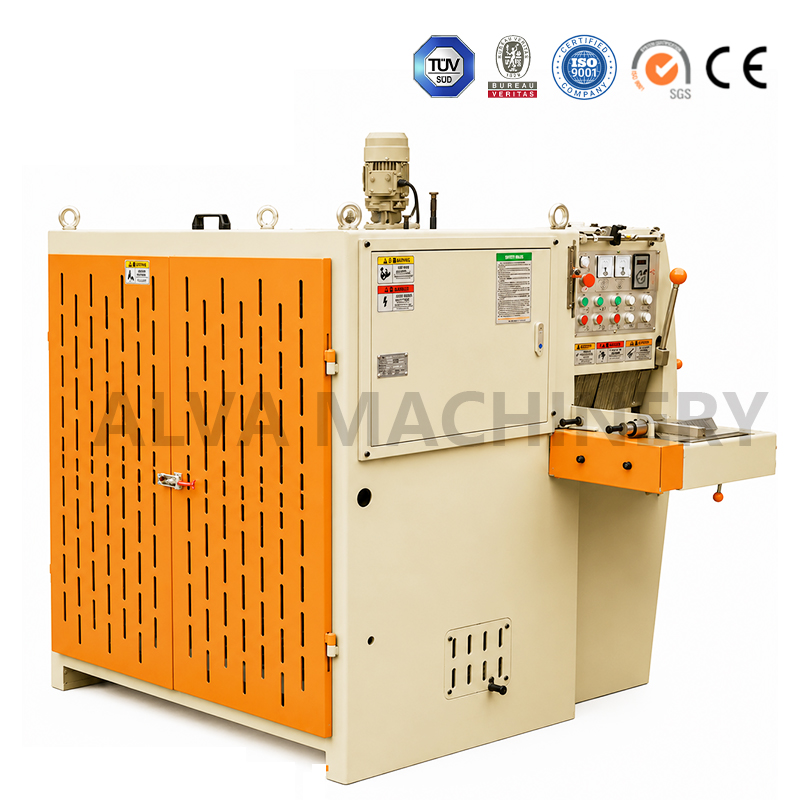

ALVA-MJ-01 Square timber multi-rip saw

Model ALVA-MJ-01 is specially developed for cutting small square timbers with length over 500mm, ideal for processing finger joint boards, blockboards and other similar wooden materials. Its lightweight compact structure takes up little floor space, greatly improving the utilization rate of workshop area.

It can stably process timber in various conditions including dry stock, green lumber, sized timber and rough stock. Equipped with high feeding speed and thin kerf saw blades, the machine delivers flat and smooth cutting surfaces without secondary sanding.
This model effectively cuts down timber loss and working hours to lower overall production costs, which is highly recommended for small and medium-sized wood processing factories to boost economic benefits.

Availability:

Quantity:



Inquire Add to Basket

Related Products

Product Description

Product Introduction

The ALVA-MJ-01 square timber multi-rip saw is customized for slitting short square timber with a length of 500mm and above, suitable for cutting core materials of finger joint boards, blockboards and other panel raw materials. With an intensive integrated body, the machine features a small footprint, which can flexibly adapt to compact workshop layouts and maximize space utilization.

Fitted with adaptive feeding components, it can steadily process timbers of different moisture levels and shapes, including dry lumber, green wood, sized finished stock and rough logs without slipping or jamming. It delivers outstanding cutting efficiency with thin-kerf saw blades, minimizing kerf loss and producing smooth, neat surfaces that eliminate secondary sanding work.

It reduces production costs by cutting timber waste and labor hours, continuously improving overall material yield and profit, making it the preferred processing equipment for standardized cutting procedures in small and medium woodworking plants.

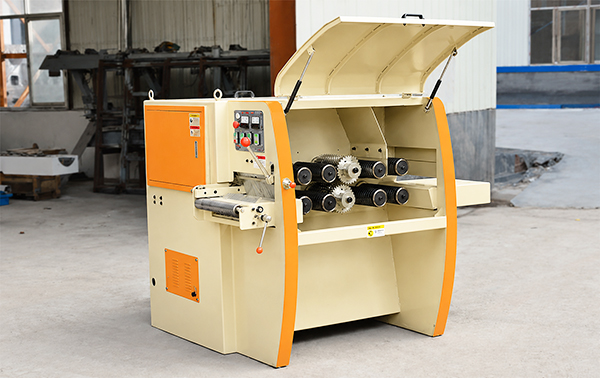

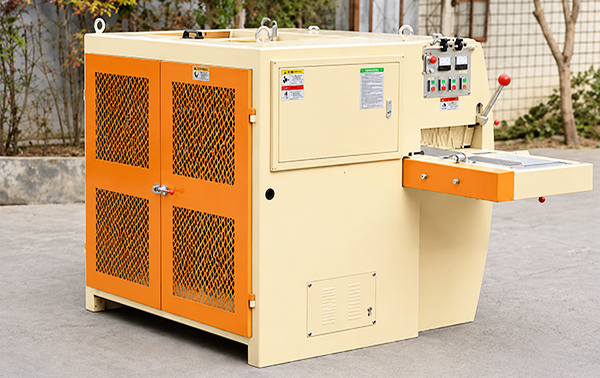

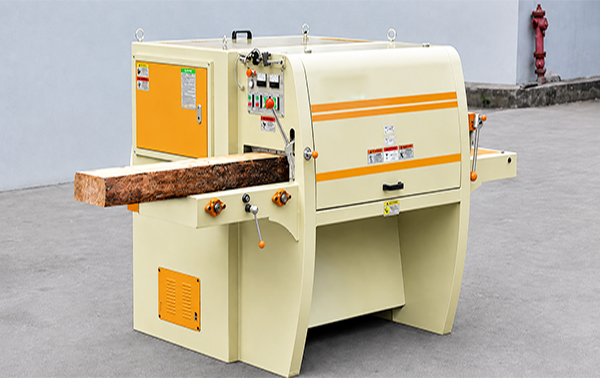

Product Display

wood machine

Product Parameter

Model	Min.width	Max.width	Min.height	Max.height	Min.length	Max.length	Overall Dimensions	Dimension	Feeding speed	Weight
ALVA-MJ-01-2509040	50mm	250mm	30mm	90mm	550mm	2000mm	60.75Kw	251514771380mm	0-12m/min	1622kg
ALVA-MJ-01-25012040	50mm	250mm	30mm	120mm	550mm	2000mm	60.75Kw	251514771380mm	0-12m/min	1622kg
ALVA-MJ-01-3009040	50mm	300mm	30mm	90mm	560mm	2000mm	60.75Kw	251514771380mm	0-12m/min	1622kg
ALVA-MJ-01-30012040	50mm	300mm	30mm	120mm	620mm	2000mm	60.75Kw	251514771380mm	0-12m/min	1622kg

Product Advantages

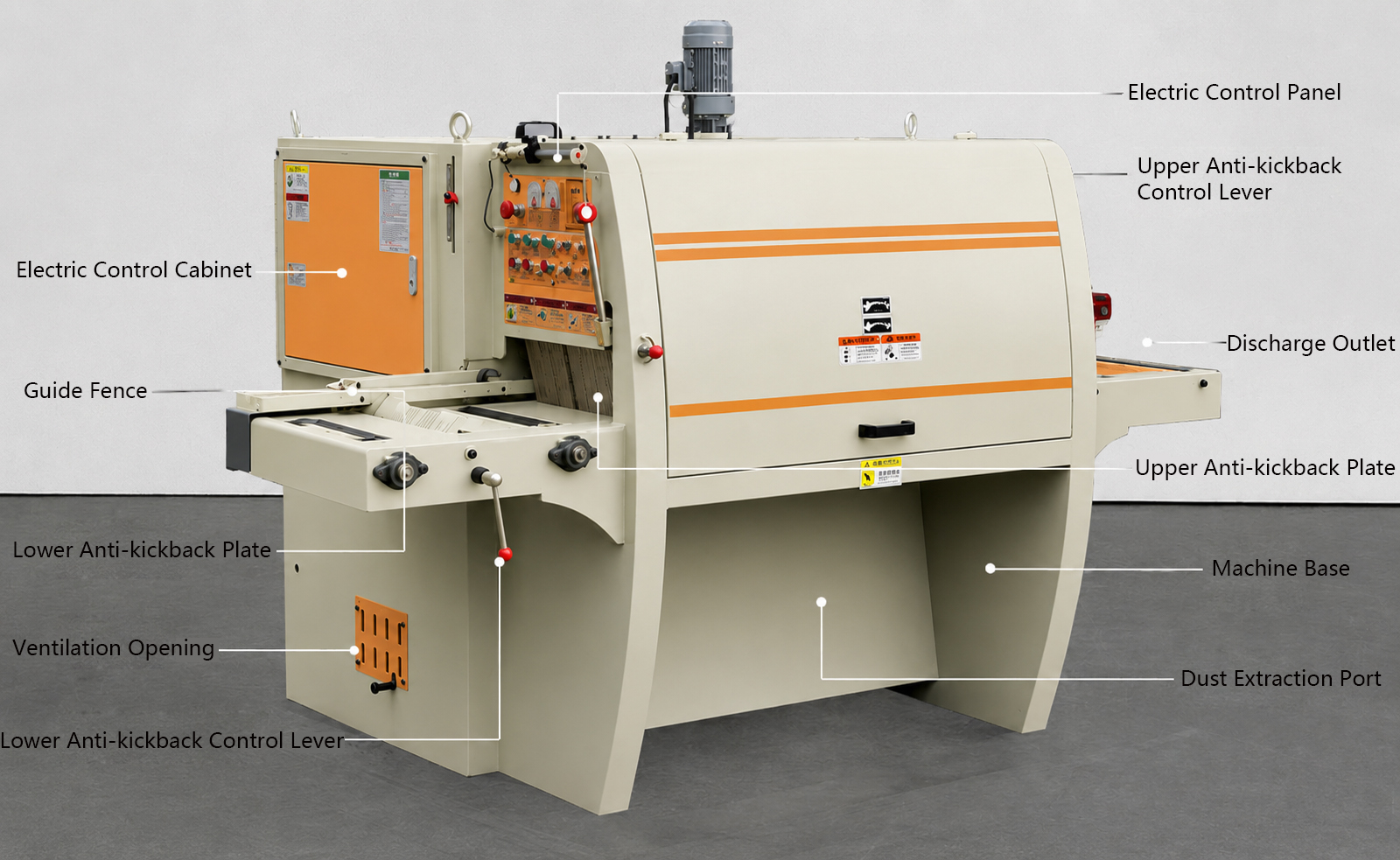

Multi-layer anti-kickback safety structure is equipped with double upper and lower anti-rebound plates and mechanical lock levers, matched with fully enclosed housing and dust outlet. It blocks timber rebound twice, collects sawdust centrally, meets CE export standards and eliminates all on-site operation risks.

Separated modular electric cabinet and control panel adopt partition wiring, with independent circuits for cutting and feeding. The flip maintenance cover allows direct disassembly of saw blades and rollers without full machine teardown, shortening downtime and cutting maintenance labor expenses.

Synchronized upper and lower pressure rollers with elastic buffers adjust clamping force adaptively for thin or irregular timber to prevent slipping and deviation. Uniform feeding keeps consistent cutting tolerance, reduces rework sorting and steadily raises finished product qualification rate.
