ALVA-MJ-03 Timber multi-rip saw

Alva ALVA-MJ-03 Square Timber Multi-Rip Saw is our premium intelligent cutting machine built with cutting-edge processing technology to deliver stable and reliable overall performance. It innovates the traditional sawing workflow, equipped with energy-saving drive modules and integrated intelligent control system to optimize production rhythm from both power and control sides and cut labor hours significantly. Compared with similar machines on the market, this model features easier operation and stronger cutting capacity with remarkable energy efficiency, cutting power consumption by over 30% per hour. It also slows down saw blade abrasion and extends the replacement cycle of consumables. The machine adopts an integrated thick cast steel frame with precisely calibrated transmission structure, offering high structural rigidity. It resists vibration and deformation under long-term full-load operation to maintain high-precision cutting results persistently.

Availability:

Quantity:



Inquire Add to Basket

Related Products

Product Description

Product Introduction

Alva ALVA-MJ-03 Square Timber Multi-Rip Saw is a high-end wood processing machine independently developed by our group, featuring advanced technology and outstanding comprehensive performance.

Adopting optimized cutting workflow, energy-saving technology and integrated intelligent control system, it greatly improves workshop production efficiency.

Compared with peer machines of the same specification, ALVA-MJ-03 boasts easier operation, higher cutting efficiency and lower power consumption, saving over 30% electricity per hour on average. Meanwhile, it effectively extends the service life of saw blades to reduce consumable costs.

The machine is equipped with thickened heavy-duty frame, rational mechanical layout and ultra-high structural rigidity, which resists deformation under long-term continuous operation and ensures stable long-run performance.

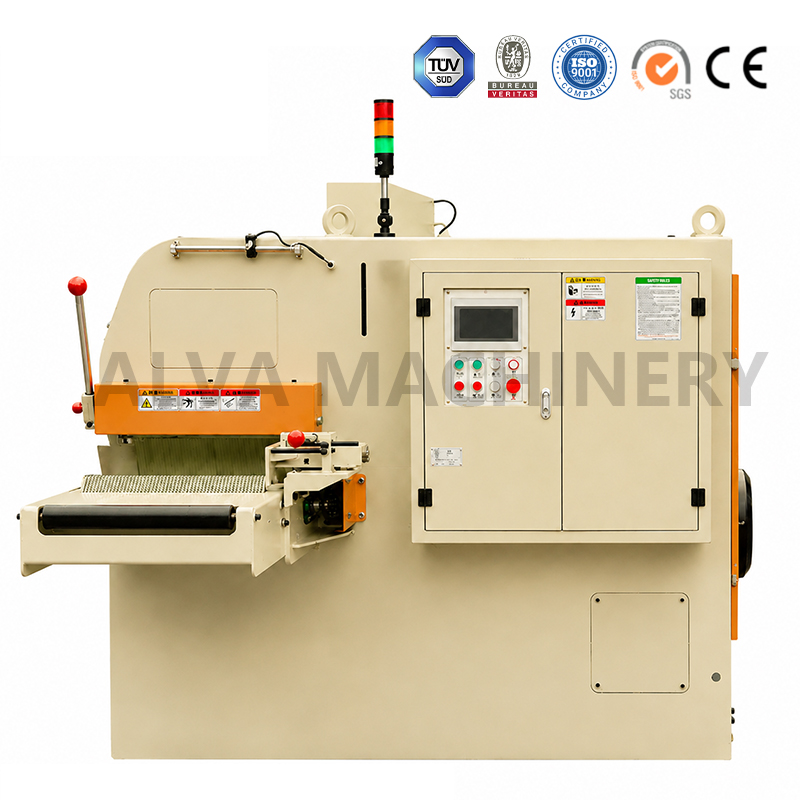

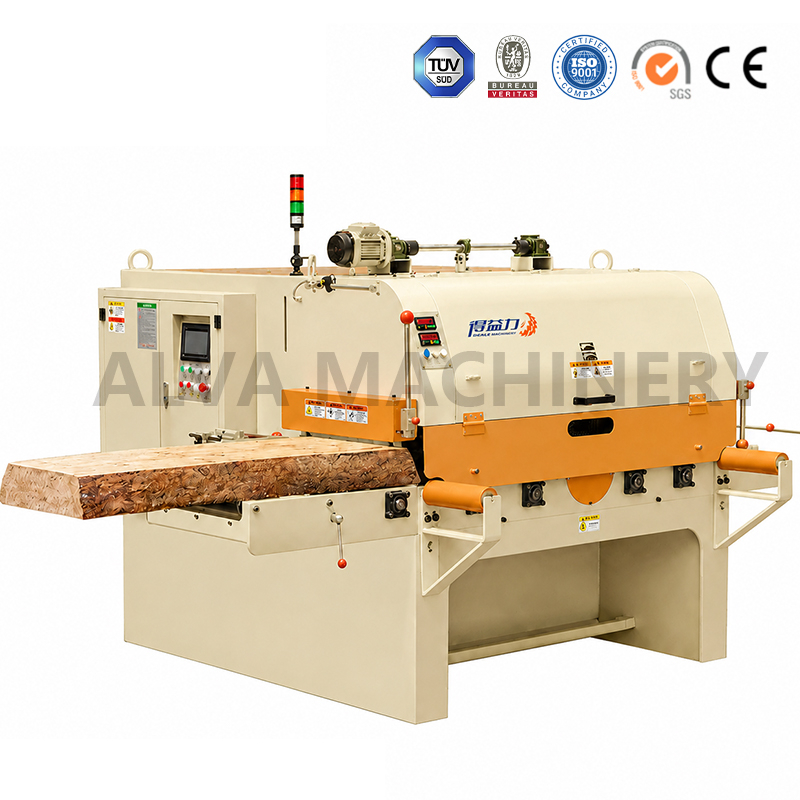

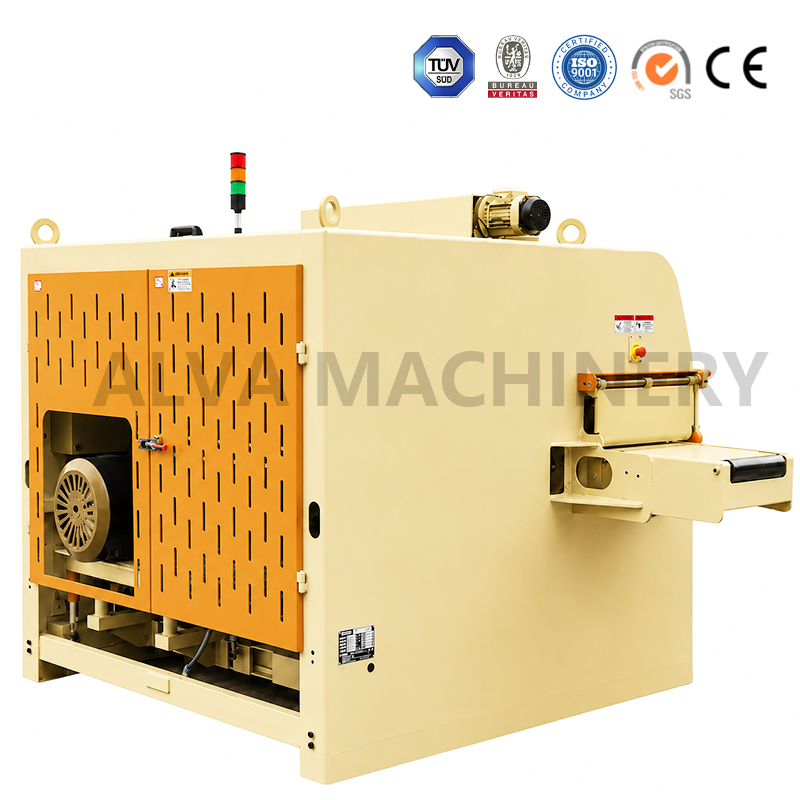

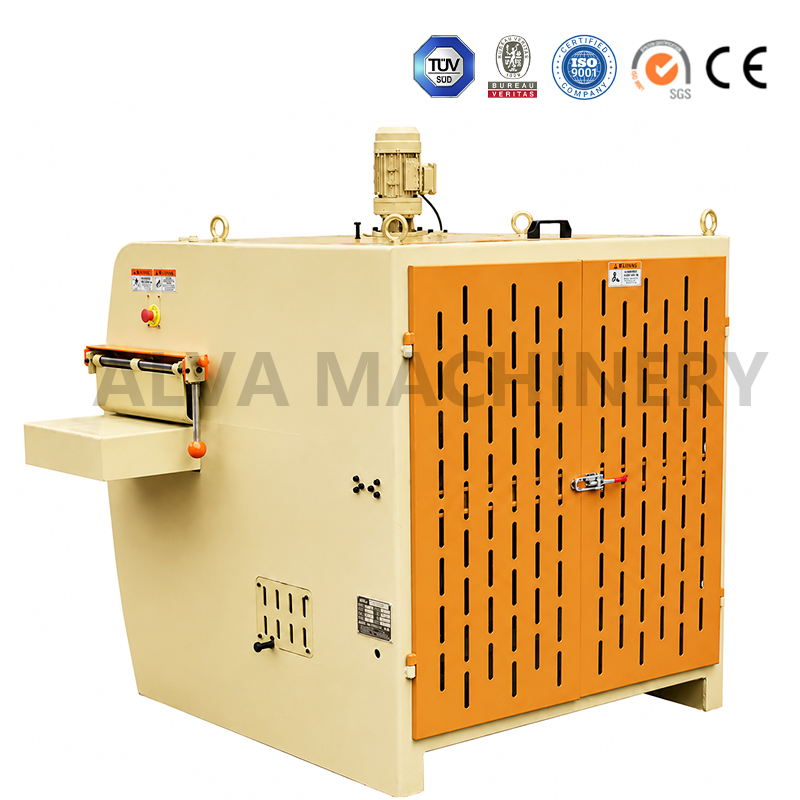

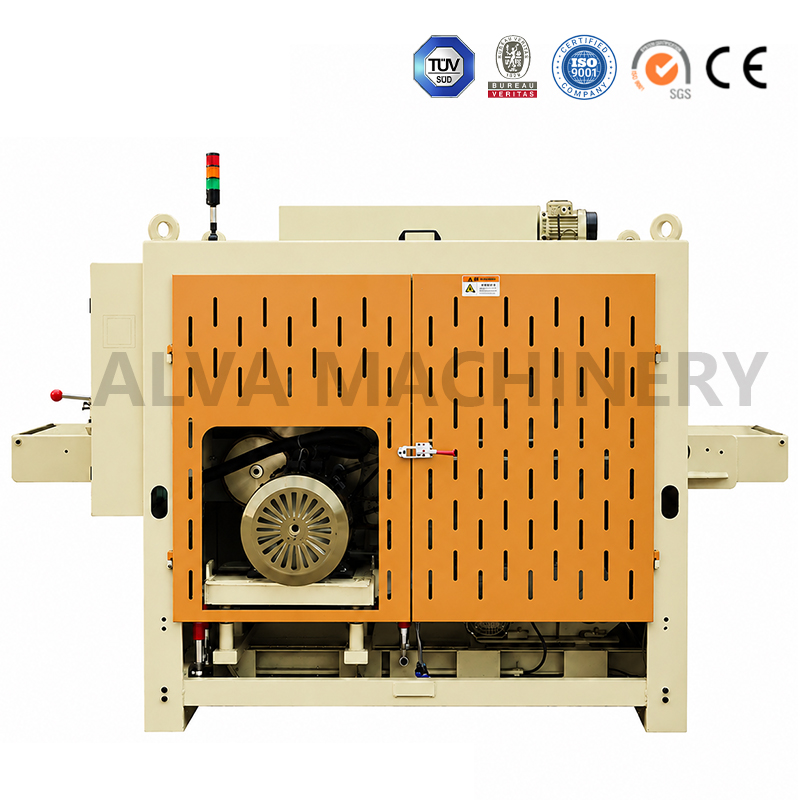

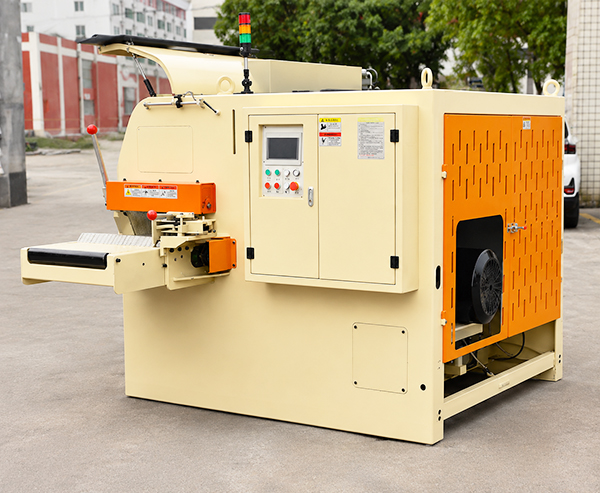

Product Display

wood machine

Product Parameter

Model	Max. Processing Width	Min. Processing Width	Max. Processing Height	Min. Processing Height	Max. Processing Length	Min. Processing Length	Total Power	Overall Dimensions (mm)	Weight
ALVA-MJ-03-400*100	400	50	100	25	Continuous feeding available	850	38.5	329019001800	2660
ALVA-MJ-03-400*120	400	50	120	25	Continuous feeding available	850	46.5	329019001800	2700

Product Advantages

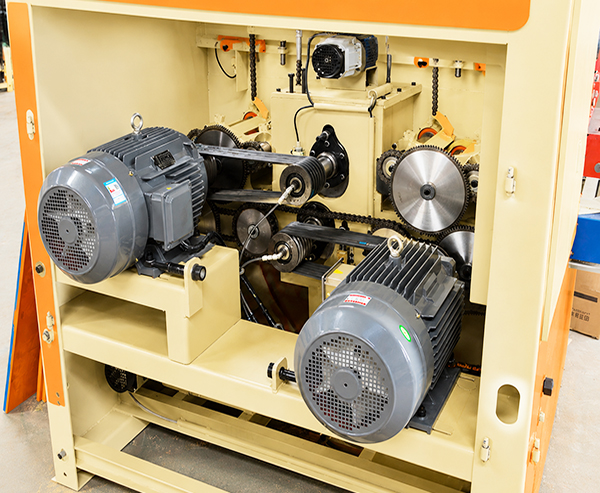

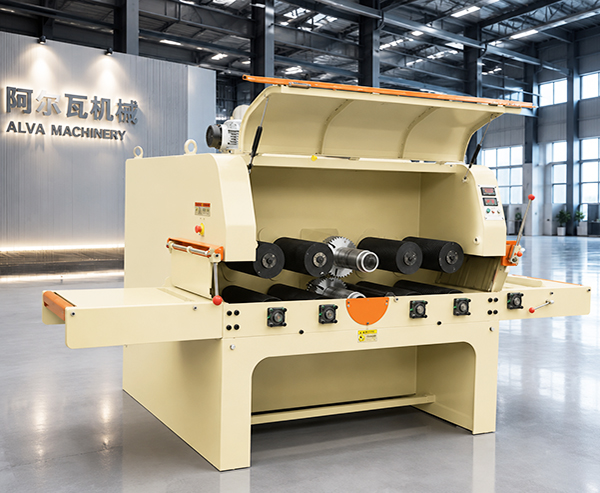

Equipped with full open flip-top cover, all internal rollers, saw shafts and dual main motors are visible. Operators can replace saw blades and maintain transmission parts without disassembling the whole machine, cutting downtime and labor cost for non-stop production.

Two independent high-power drive motors supply separate power for feeding and cutting without interference. With intelligent energy-saving control, it saves over 30% power hourly and balances cutting load to reduce saw blade abrasion and extend service life.

Integrated touch control cabinet with 3-color warning light supports digital adjustment of cutting parameters and real-time fault alert. Full closed protective housing and multi anti-kickback devices meet CE standards to avoid kickback and sawdust splashing risks.
