You can transform logs into thin, high-quality veneer sheets using a wood veneer peeling machine. This automatic machine handles wood processing with impressive efficiency and precision. The main steps include log preparation, centering, veneer peeling, analyzing, clipping, and stacking.
Rotary veneer peeling lathes achieve a recovery rate of 70% to 80%, much higher than manual methods.
Advanced machines use pressure rollers and adjustable cutterheads to ensure uniform thickness and minimal waste.
You get consistent results and reliable veneer quality with every use.
You start the veneer peeling process by choosing the right logs. You look for straight logs with minimal surface flaws and the correct size. After selection, you prepare the logs by removing the bark and soaking them in hot water. This step softens the wood fibers, making wood processing easier and improving the quality of the veneer sheets.
You load the logs into the veneer peeling machine. The machine uses either a spindle or spindleless mechanism. In spindle peeling, the log is clamped and rotated by a motor while a peeling knife slices off thin layers. In spindleless peeling, friction rollers drive the log, and a motor pushes the knife for precise cutting. Hydraulic systems clamp the logs securely, and you can adjust the machine to control the thickness of each layer with high precision. The veneer peeling machine can reach speeds up to 150 meters per minute, which boosts efficiency in plywood production.
Tip: Always supervise the veneer peeling lathe and check the sharpness of the blades. Correct positioning of steel racks helps maintain uniform layers and sheet quality.
After peeling, you collect the veneer sheets. You sort and stack them by moisture content before drying. Proper timing in drying and pressing ensures the sheets have optimal moisture, which is crucial for quality. Efficient drying reduces energy use and increases production speed. You finish the process by trimming and stacking the sheets, preparing them for bonding in plywood production.
You can break down the veneer peeling process into several key stages. Each stage plays a vital role in ensuring quality and production efficiency.
Choosing the Wood
You select logs based on straightness, surface flaws, and size. Good selection leads to better veneer quality and fewer defects.
Slicing Preparation
You strip the bark and soak the logs in hot water. Soaking softens the fibers, which improves recovery rates and makes peeling easier.
Types of Slicing
You use rotary slicing most often, but vertical and horizontal slicing are also options. Rotary slicing is the fastest and most efficient for producing uniform layers.
Peeling
The veneer peeling machine slices thin layers from the log. You control the thickness and surface quality by adjusting the machine settings.
Drying
You dry the veneer sheets and stack them in order. Sorting by moisture content before drying improves the outcome and saves energy.
Finishing
You trim and prepare the sheets for bonding. Proper finishing ensures stability and readiness for plywood production.
Here’s a table showing how each stage affects quality and efficiency:
Stage | Impact on Quality | Impact on Efficiency |
|---|---|---|
Soaking | Softens wood fibers, improves veneer quality and recovery rates. | Enhances ease of peeling, reduces processing time. |
Loading and Centering | Ensures uniform veneer sheets, affects overall quality. | Accurate centering improves production speed. |
Peeling | Controls veneer thickness and surface quality. | Advanced technology increases yield, reduces waste. |
Collection | Minimizes waste and breakage during transfer. | Automation improves workflow, reduces bottlenecks. |
Finishing | Prepares sheets for bonding, ensures stability. | Proper drying and trimming enhance production efficiency. |
Note: Dividing sheets into moisture classes before drying can improve energy savings and production efficiency.
You must follow safety measures during operation. Only trained personnel should maintain the machine. Operators must wear protective clothing and avoid loose items. Always check safety facilities before starting, and stop the machine in case of any crisis. Regular maintenance keeps the wood veneer peeling machine running smoothly and safely.

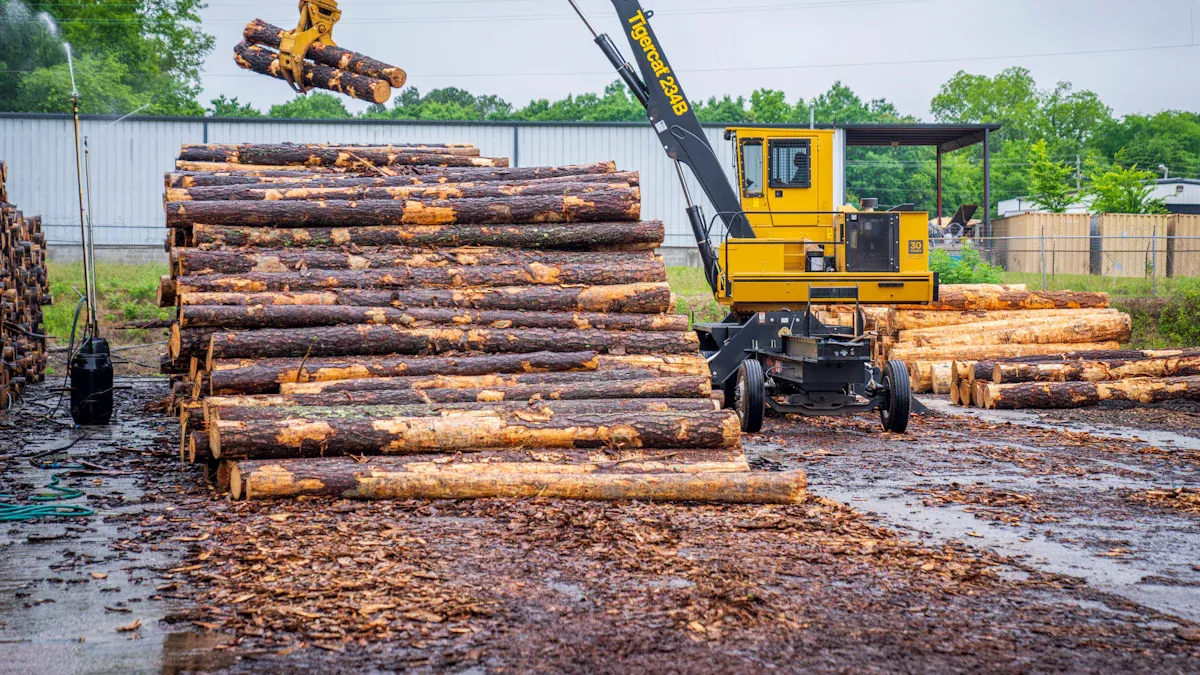

Preparing logs is a crucial step before you start peeling veneer. You influence the quality of the final veneer sheets by how you select, treat, and position each log. If you pay attention to these details, you can achieve smoother, more uniform sheets and reduce waste.
You begin by steaming the logs. This process softens the wood fibers and makes peeling easier. When you steam logs, you improve the yield and get sheets with better smoothness and thickness uniformity. Steaming also helps relieve growth stresses in certain wood species, which boosts the overall quality of the timber.
Steaming logs enhances veneer yield, smoothness, and thickness uniformity.
It reduces energy consumption during the peeling process.
Steaming relieves growth stresses in certain wood species, improving overall timber quality.
You need to control the temperature and duration carefully. The optimal temperature for steaming logs in veneer manufacturing is 70°C. You should steam the logs for 48 hours to get the best results. If you follow these guidelines, you reduce stress during slicing and allow for cleaner cuts. This minimizes waste and leads to higher quality veneer.
Here’s a table showing how each step in log preparation affects the quality of your veneer sheets:
Step | Description | Impact on Quality |
|---|---|---|
Log Selection | Choosing high-quality logs based on species, size, and defects. | Determines suitability for veneer production and affects final appearance. |
Debarking | Removing bark using specialized machines to prevent damage to the wood. | Ensures no remnants remain, improving aesthetic quality and consistency in thickness. |
Soaking/Softening | Immersing logs in water or steam to soften fibers before cutting. | Reduces stress during slicing, allowing for cleaner cuts and minimizing waste, resulting in higher quality veneer. |
Note: If you steam logs at the right temperature and duration, you make the peeling process more efficient and improve the final product.
After steaming, you must center each log block in the peeling machine. Accurate block centering is essential for maximizing veneer recovery and producing uniform sheets. You use advanced features like laser scanning and block centering analyzers to optimize the position of each log.
Feature | Description |
|---|---|
Laser Scanning | Increases veneer recovery significantly by optimizing block centering. |
Block Centering Analyzer | Can increase veneer recovery by up to 15% with the same amount of raw material. |
Face Veneer Production | Accurate block centering allows for up to 20% more face veneer production. |
Autocalibration | Ensures continuous centering accuracy for optimal veneer recovery. |
You also benefit from XY centering and optimization. The Block Centering Analyzer R7 uses sophisticated algorithms to define the best position for each block. Autocalibration measures centering results and maintains constant performance. If you optimize block centering, you maximize high-quality face veneer production.
"Accurate block centering in veneer sheet application leads to a symmetrical pattern, which is considered the most pleasing match in architectural paneling. This method requires more veneer due to the trimming and centering process, but it enhances the uniformity of the veneer sheets."
When you focus on precise block centering, you create sheets with symmetrical patterns and consistent thickness. This attention to detail improves the appearance and quality of the finished veneer, especially for architectural uses. If you use these advanced centering techniques, you increase recovery rates and reduce waste, making your production more efficient.
You need to secure each log firmly before you start the peeling process. The spindle and frame of the veneer peeling machine play a key role in this step. The spindle acts as the main support for the log. You place the log between two strong spindles, which grip both ends tightly. This setup keeps the log from shifting or slipping during rotation.
The frame of the machine provides a solid foundation. It holds the spindles in place and absorbs vibrations. You benefit from a sturdy frame because it keeps the entire system stable, even when the machine runs at high speeds. Some machines use a spindleless design, where friction rollers grip the log instead. These rollers press against the log’s surface and rotate it smoothly. Both spindle and spindleless systems aim to keep the log steady and centered.
You can see the importance of the spindle and frame in the following table:
Component | Function | Benefit to Veneer Quality |
|---|---|---|
Spindle | Holds and rotates the log | Ensures even peeling |
Frame | Supports and stabilizes the machine | Reduces vibration and movement |
Rollers | Grip and turn the log (spindleless type) | Maintains smooth rotation |
Tip: Always check the spindle and frame for wear or damage before starting. A well-maintained machine produces better veneer sheets.
You must maintain stability during the rotation of each log to get smooth, high-quality veneer sheets. Several factors help you achieve this stability. First, you need to position the peeling knife with precision. The sharpness of the knife also matters. A sharp knife cuts cleanly and reduces the risk of tearing or breaking the veneer.
You should adjust the peeling speed and the angle of the knife based on the type of wood and the diameter of the log. High-end spindleless machines allow you to control the linear motion of the log very accurately. This control helps you avoid burrs or rough spots on the veneer surface. The grinding angle of the knife must match the wood species and the desired veneer thickness. If you set these parameters correctly, you keep the log steady and the veneer uniform.
Here are some steps you can follow to maintain stability:
Position the log and knife carefully.
Check the sharpness and angle of the peeling knife.
Set the correct peeling speed for the wood type.
Monitor the machine for any unusual vibrations.
Note: Proper stability during rotation not only improves the surface quality of the veneer but also extends the life of your machine.
You play a crucial role in monitoring these conditions. When you pay attention to the details of log securing and stability, you help produce veneer sheets that meet high standards for both appearance and strength.
You start the peeling process by setting the log in motion. The veneer peeling machine spins the log against a sharp blade. This rotary motion lets you strip away continuous layers from the log’s surface. You get wide and lengthy veneer sheets because the log rotates smoothly. Rotary motion works best for larger and more flexible wood species. You can see how this method helps you produce veneer sheets with a consistent grain pattern and broad, seamless surfaces.
Rotary motion allows the log to spin against a blade.
This continuous stripping produces wide and lengthy veneer sheets.
The method is effective for processing larger and more malleable wood species.
Here is a table showing different machinery types and their roles in wood processing:
Machinery Type | Description |
|---|---|
Rotary lathes | Rotates wood against a sharp blade to create continuous slices, ideal for plywood. |
Half round lathes | Turns wood to highlight visually interesting grain patterns, producing dynamic rift cuts. |
Slicing machines | Uses a straight blade for uniform cuts, creating veneers that resemble sawn wood pieces. |
Cutting Influence | The log's initial cut affects the veneer type, such as crown cut or quarter cut. |
Tip: Rotary motion helps you achieve a consistent grain pattern and process larger logs efficiently.
You rely on the cutting tool to shave off thin layers from the rotating log. The cutting tool in a veneer peeling machine is a sharp, adjustable blade. You control the blade’s position and sharpness to produce uniform veneer sheets. The blade shaves off each layer with precision, which gives you control over the thickness and quality of the veneer.
The cutting tool is a sharp, adjustable blade.
It shaves off thin layers of wood from a rotating log.
This process produces uniform veneer sheets with controlled thickness and quality.
You need to check the blade regularly. A sharp blade reduces knife marks and keeps the surface smooth. High-quality tools and proper feed rates help you maintain grain integrity and avoid knots or cracks. You can see how the cutting tool influences the efficiency and quality of veneer peeling in the table below:
Factor | Description |
|---|---|
Peeling Speed | Affects production efficiency; high speeds can reduce surface quality. |
Peeling Precision | Influences veneer thickness uniformity; high precision can control error within ±0.05 mm. |
Cutting Thickness | Sharp blades and proper pressure are crucial for thickness accuracy. |
Surface Quality | Quality of tools and feed rate affects smoothness; high-quality tools reduce knife marks. |
Grain Integrity | Consistent grain direction enhances strength and visual appeal; reduces knots and cracks. |
Note: You should always adjust the blade and monitor its sharpness to maintain high-quality veneer sheets.
You must control the thickness of each veneer sheet during wood processing. The veneer peeling machine uses advanced technology to help you measure and adjust thickness with great accuracy. Even small changes in motor speed or pressure can affect the final product. You use control equations to identify variables that impact motor speed, which in turn affects veneer thickness.
Mate Gauge technology is built around a continuously-scanning Virtual Micrometer. A C-frame equipped with laser sensors moves continuously across the sheets, providing a full cross-sectional thickness measurement.
You can follow these steps to adjust and check veneer thickness:
Adjust the pressure of the peeling machine.
Place a set square (500*250mm) between the double blossom rollers.
Position a straight ruler (150mm) upright against the single blossom roller.
Observe the measurement between the set square and the straight ruler.
For veneer thickness of 1-2mm, the measurement should be 35-36mm. Adjust accordingly for thickness less than 1mm (increase measurement) or greater than 2mm (decrease measurement).
Mate Gauge technology uses a virtual micrometer with laser sensors to measure veneer thickness accurately. You get real-time feedback and can make quick adjustments. This helps you avoid imperfections and ensures each layer meets your standards.
Tip: Accurate thickness control lets you produce uniform layers and reduces waste in veneer peeling.
You play an important role in veneer processing by checking each sheet for quality. After peeling, you must analyze the veneer sheets to make sure they meet production standards. You use several methods to inspect the sheets. Operators look for surface defects, measure moisture content, and check the strength of each sheet. These steps help you sort the sheets and decide how to use them.
Here is a table showing the main methods you use to analyze veneer sheets:
Method | Description |
|---|---|
Visual Grading | You assess surface quality and categorize sheets based on visible defects. |
Moisture Content Analysis | Automated systems measure moisture levels to ensure sheets are not too wet or too dry. |
Strength-Based Grading | Analyzers check strength qualities needed for building materials. |
You need to pay close attention during this stage. If you miss a defect or ignore moisture levels, you risk producing weak or uneven layers. Careful analysis helps you maintain high standards and avoid waste.
Tip: Always check for cracks, knots, and uneven thickness. These problems can affect the strength and appearance of the final product.
You move to the next step in veneer processing by clipping and stacking the sheets. You use smart cameras and sensors to monitor quality and efficiency. These tools help you clip the sheets to the correct size and remove any damaged edges. Automation makes your job easier and reduces labor costs.
You handle each sheet with care to prevent bending or tearing. Specialized conveyor belts cradle the sheets and keep them stable. You must align the sheets properly to avoid problems during stacking. You sort the sheets into stacks based on length, width, quality, thickness, and moisture content. This sorting helps you process the sheets automatically and reduces waste from breakages.
Vacuum technology lifts and places the sheets onto platforms with precision. You use vacuum boxes to control suction and drop height, which allows you to stack sheets of different sizes quickly and accurately. This method also saves energy and lowers power consumption.
Here is a simple list of steps you follow during clipping and stacking:
Clip the veneer sheets to the correct size.
Use conveyor belts to move sheets gently.
Sort sheets by their characteristics.
Stack sheets using vacuum technology.
Note: Proper handling during stacking keeps the layers flat and prevents damage. Efficient stacking improves workflow and helps you produce high-quality veneer.
You must focus on quality control throughout veneer processing. Careful analysis, clipping, and stacking ensure that each sheet meets your standards. You create strong, uniform layers ready for use in furniture, flooring, or plywood.
You rely on the motor and transmission system to power the wood veneer peeling machine. The motors deliver strong and steady performance, which is essential when you process hardwood logs. You often see double roller motors rated at 15KW each, paired with k87 reducers. Single roller motors usually have 11KW each, also with k87 reducers. The feeding motor, rated at 15KW, works with a k87 reducer to move logs smoothly toward the blade. Siemens Bede is a common brand for these motors, known for reliability.
The transmission system uses a gear box to drive the screw mechanism. High-quality alloy gears help the machine run smoothly and last longer. You control the entire system with a CNC PLC unit, which uses a driver or inverter for precise adjustments. This control system lets you set the speed and pressure for each log, so you get veneer sheets with even thickness. Futian Servo motors add extra accuracy to the feeding process, which helps you maintain consistent veneer thickness.
Here is a table showing the main motor and transmission specifications:
Component | Specification |
|---|---|
Double roller motor | 15KW*2 with k87 reducer |
Single roller motor | 11KW*2 with k87 reducer |
Feeding motor | 15KW with k87 reducer |
Brand of motor | Siemens Bede |
Total power | 67kw |
Transmission | Gear box driving screw |
Gear material | High quality alloy |
Control system | CNC PLC with driver or inverter |
Tip: You should check the motor and transmission system regularly. Proper maintenance helps you avoid breakdowns and keeps your machine running at high precision.
You use the spindle to hold and rotate the log during the peeling process. The spindle grips both ends of the log tightly, which keeps it stable as the machine spins it. This stability is important because it ensures you get even veneer thickness across each sheet. The spindle works with the rotating shaft, which keeps the log moving at a constant speed. You can adjust the speed depending on the wood type and the thickness you want.
Some machines use a spindleless design, where friction rollers grip the log instead. These rollers press against the log’s surface and rotate it smoothly. Whether you use a spindle or rollers, your goal is to keep the log centered and secure. This helps you produce uniform sheets and reduces waste.
Here is a table showing the main components and their functions:
Component | Function |
|---|---|
Peeling Lathe (Rotating Shaft) | Holds logs securely and rotates them at a constant speed, ensuring even veneer thickness. |
Log Feeding System | Advances logs towards the blade at a consistent rate to maintain uniform veneer thickness. |
Note: You should always check the spindle for wear or damage before starting. A well-maintained spindle helps you achieve better results.
You depend on the cutting tool, often called the peeling knife or blade, to slice thin sheets from the log. The blade must be sharp and adjustable. You can change the angle of the blade to match different wood types. This flexibility lets you cut veneer sheets with smooth surfaces and consistent thickness.
The cutting tool works with the control unit, which lets you adjust machine settings for each batch of logs. You can set the blade position and pressure to match your needs. This control helps you produce high-quality veneer with fewer defects. The blade’s sharpness and angle play a big role in the final appearance of the veneer.
Here is a list of what you should check before using the cutting tool:
Blade sharpness
Blade angle
Blade position
Pressure settings
Tip: You should inspect the cutting tool often. A sharp and well-positioned blade helps you avoid rough edges and keeps your veneer sheets uniform.
The frame forms the backbone of your wood veneer peeling machine. You depend on a strong frame to keep all parts aligned and stable during operation. The frame supports the spindles, motors, and cutting tools. It absorbs vibrations and resists movement, which helps you produce smooth and uniform veneer sheets.
You often see frames made from heavy-duty steel. Manufacturers choose steel because it resists bending and twisting. You get better durability and longer machine life with a steel frame. Some machines use reinforced welded joints. These joints add extra strength and prevent cracks from forming over time.
You should pay attention to the design of the frame. A well-designed frame has a wide base and solid supports. You benefit from adjustable mounting points. These points let you fine-tune the position of spindles and cutting tools. You can adapt the machine for different log sizes and wood species.
Here is a table showing important frame features and their benefits:
Frame Feature | Benefit to Machine Performance |
|---|---|
Heavy-duty steel | Increases durability and stability |
Reinforced joints | Prevents cracks and extends machine life |
Wide base | Improves balance and reduces vibration |
Adjustable supports | Allows for precise alignment |
Anti-corrosion finish | Protects against moisture and chemicals |
You need to check the frame for signs of wear or damage before each use. Look for loose bolts, rust, or cracks. If you find problems, fix them right away. A damaged frame can cause misalignment. Misalignment leads to uneven veneer sheets and machine breakdowns.
Tip: Clean the frame regularly. Remove dust, wood chips, and moisture. This simple step helps you prevent rust and keeps your machine running smoothly.
You can use vibration dampers on the frame. These dampers absorb shocks and reduce noise. You get a quieter workspace and protect sensitive machine parts. Some advanced machines include built-in sensors. These sensors monitor frame stability and alert you to problems.
You play a key role in maintaining the frame. Regular inspections and cleaning help you avoid costly repairs. You ensure that the machine stays safe and efficient. When you care for the frame, you improve veneer quality and extend the life of your equipment.
You should remember that the frame supports every other component. A strong frame means better performance and higher-quality veneer sheets. You make your job easier and your results more reliable when you keep the frame in top condition.
You see how the wood veneer peeling machine transforms logs into high-quality veneer with impressive efficiency and precision. Each step in wood processing, from drying and cutting to gluing, plays a key role in producing strong, stable sheets. The advanced control systems in the veneer peeling machine help you achieve consistent veneer thickness and quality.
Feature | Description |
|---|---|
Stability | Stable operation during high-speed veneer peeling. |
Precision | Thickness error controlled within 0.05mm for top wood processing standards. |
Peeling Speed | Fast speeds improve efficiency and surface quality. |
Veneer peeling uses book matching and zigzag gluing to create attractive, durable panels.
You benefit from technology that makes wood processing reliable and efficient.
You can appreciate how each component and process step works together to deliver high-quality veneer for furniture, flooring, and more.
You can process many hardwoods and softwoods, including poplar, birch, maple, and pine. Always select straight logs with few knots for the best veneer quality.
You should inspect the knife daily. Sharpen it regularly and check for chips. A sharp blade gives you smooth veneer sheets and reduces waste.
You can change veneer thickness using the control panel. Adjust the pressure and speed settings. Advanced machines let you make quick changes for different projects.
You need to wear safety glasses, gloves, and ear protection. Avoid loose clothing. Always follow the manufacturer’s safety instructions for the wood veneer peeling machine.
You should steam or soak logs before peeling. Control moisture levels and use sharp blades. Handle sheets gently during stacking and drying.
Most machines operate at speeds up to 150 meters per minute. You can adjust speed based on wood type and desired veneer thickness.
You inspect sheets for cracks, knots, and uneven thickness. Use moisture meters and visual grading. Automated systems help you sort sheets quickly.
You can use veneer sheets from the machine to make plywood. The sheets are trimmed, dried, and glued together for strong, stable panels.
