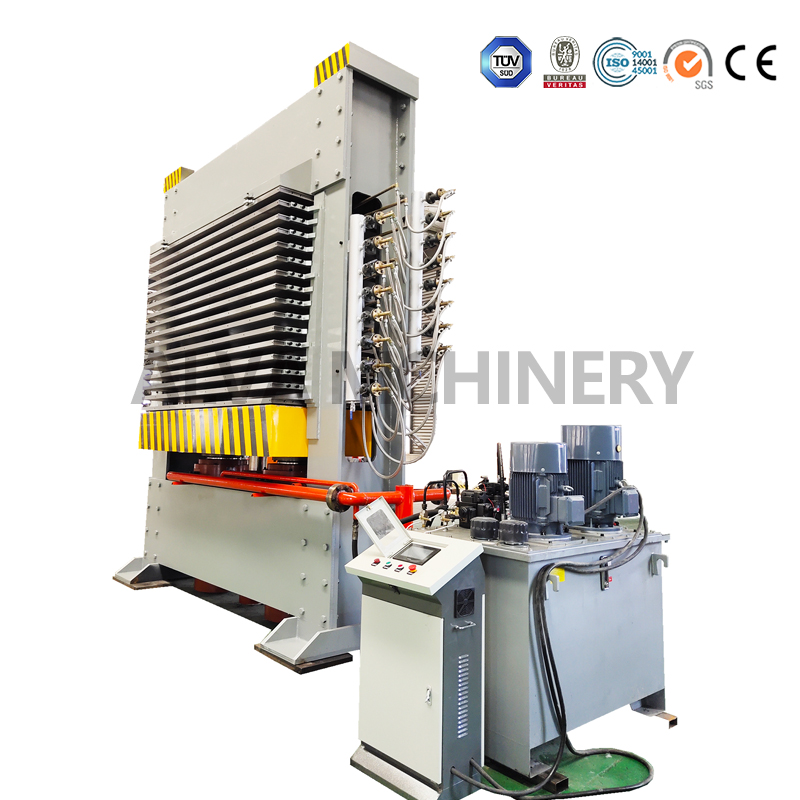

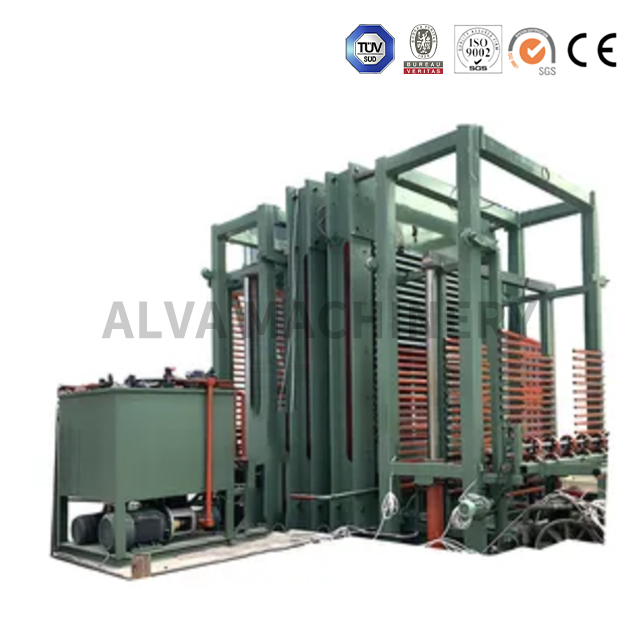

Industrial Hydraulic Plywood Hot Press

Plywood hot press is one of the main equipment in the plywood production process. It is used to hot press and glue the slabs after the glue is combined. Different types of plywood have different requirements for the performance of the press, including ordinary plywood, aviation plywood, plastic veneer, wood laminated plastic board and ship plywood. The pressure required for the manufacture of these different types of plywood gradually increases. As a professional plywood production equipment, our hot press has stable performance and efficient production capacity, which can meet the production needs of different types of plywood. We are committed to providing customers with high-quality products and services to ensure the smooth progress of the plywood production process.

Quantity:
Availability:





Inquire Add to Basket

Related Products

Product Description

Wood hot press is a professional equipment for processing wood under high temperature and high pressure. Its main function is to make the resin components on the surface of the wood penetrate into the inside, thereby increasing the hardness, density and beauty of the wood. During the hot pressing process, the gaps in the wood will be filled, the weight of the wood will increase, and the color of the wood will become darker, making the wood more textured and more beautiful. Users only need to put the wood into the hot pressing chamber, and through heating and pressurizing, the wood will be given higher strength and density. It is an important part of the plywood production line.

/ Product advantages /

01

High-strength hot-pressing panel

Adopts excellent hot-pressing hot plate, good pressure-bearing performance, not easy to deform, and evenly heated.

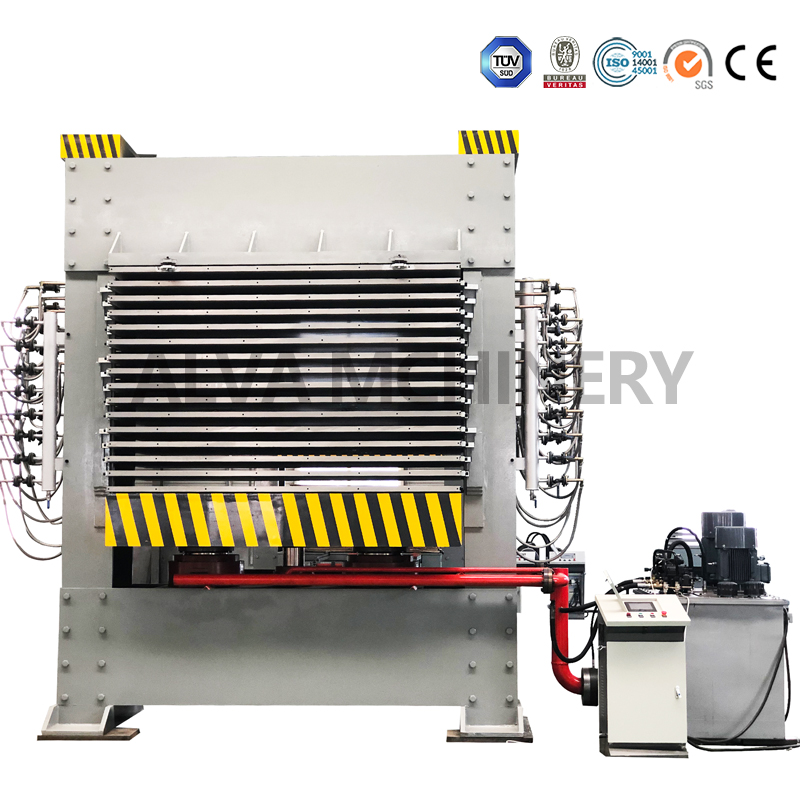

Industrial Hydraulic Plywood Hot Press

02

Thickened and heavy body

The tabletop is processed by gantry milling, the body is anti-corrosion and rust-removal, and the whole body is sprayed with anti-rust paint.

03

Control panel

Button-type operation panel, simple operation

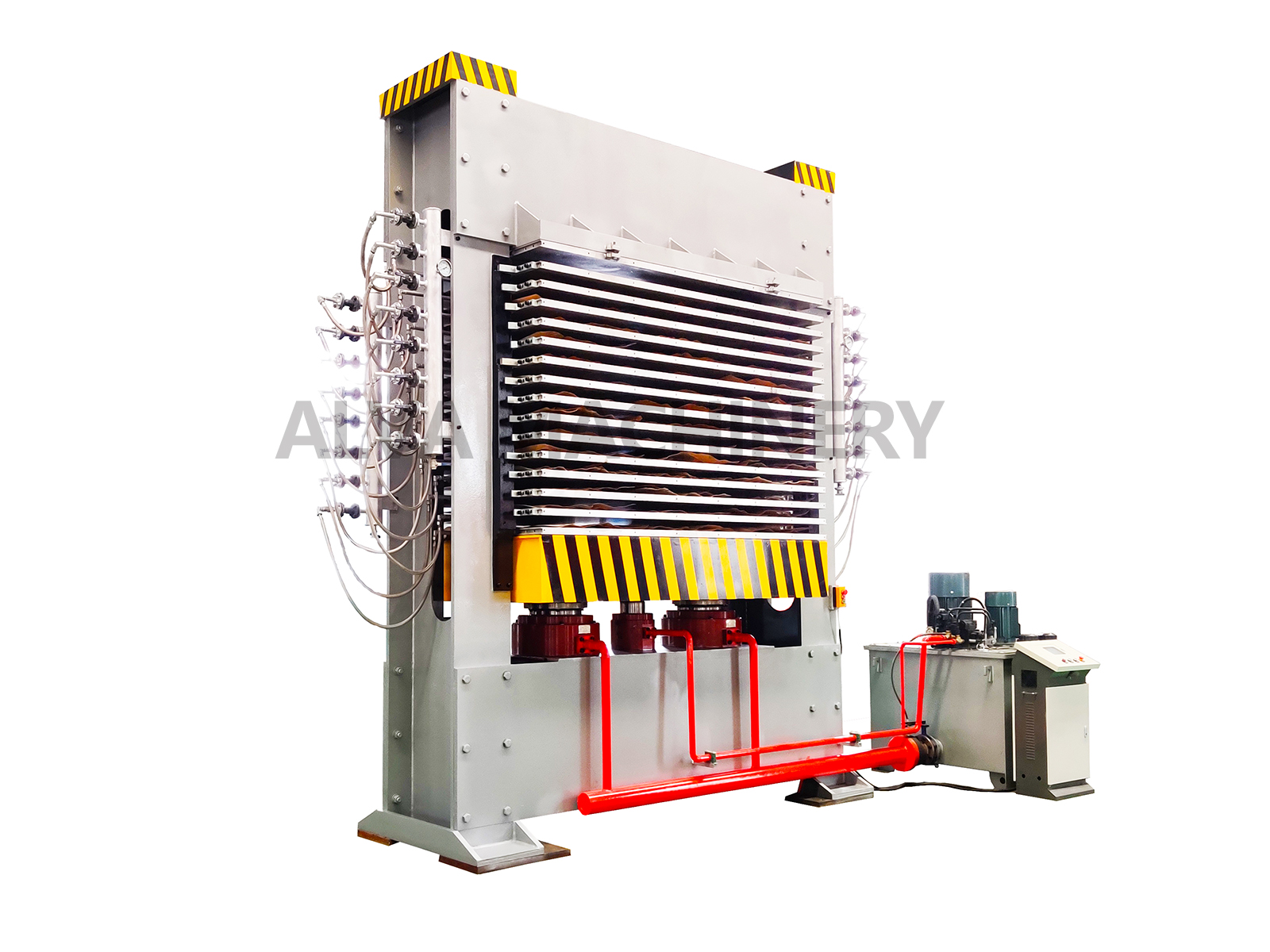

Industrial Hydraulic Plywood Hot Press

04

Integrated cylinder

Adopts an integrated cylinder to ensure long-term use without oil leakage and achieve good pressure-maintaining effect

/ Product Parameter /

NAME	UNIT	PARAMETER
Nominal Pressure	T	500
Board Feeding Direction		Transverse
Nmberof Opening	Layer	15
Opening Distance	MM	70
Number of Hot Plate	PC	16
Size of Hot Platen	MM	1370270042
Numbers of Cylinder	PC	2
Diameter of Cyinder	MM	360
Working Stroke of Cylinder	MM	1050
Allowed Pressure	MPa	≤25
Flow of Low Pressure Pump	L/MIN	250*2
Power of Motor	KW	11KW*2
Flow of High Pressure Pump	L/MIN	25
Allowed Pressure	Mpa	25
Power of Motor	KW	7.5KW1
Overall Dimensions	MM	3700x1370x4300
Control Method		Automatic hydraulic stations
Thickness of Upper And Lower Crossbeams	MM	900
Main Steel Plate Thickness	MM	35
