 | Product Introduction |

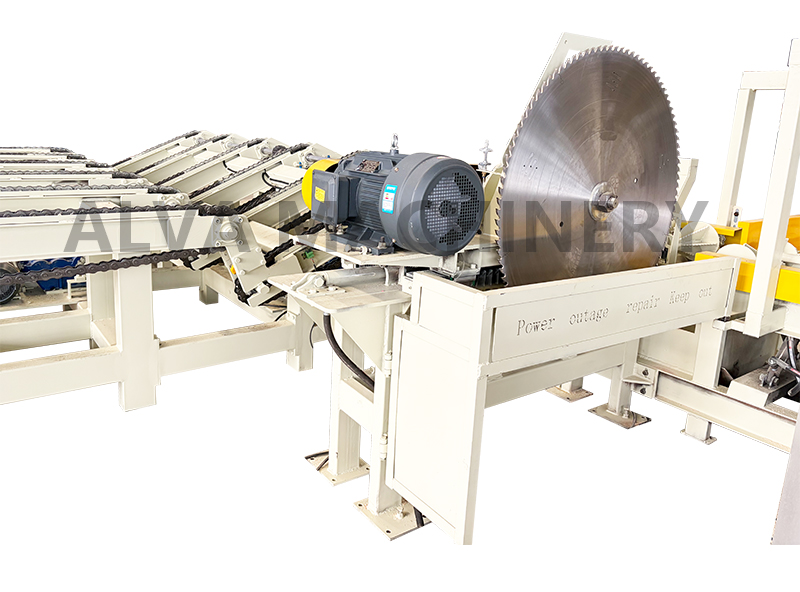

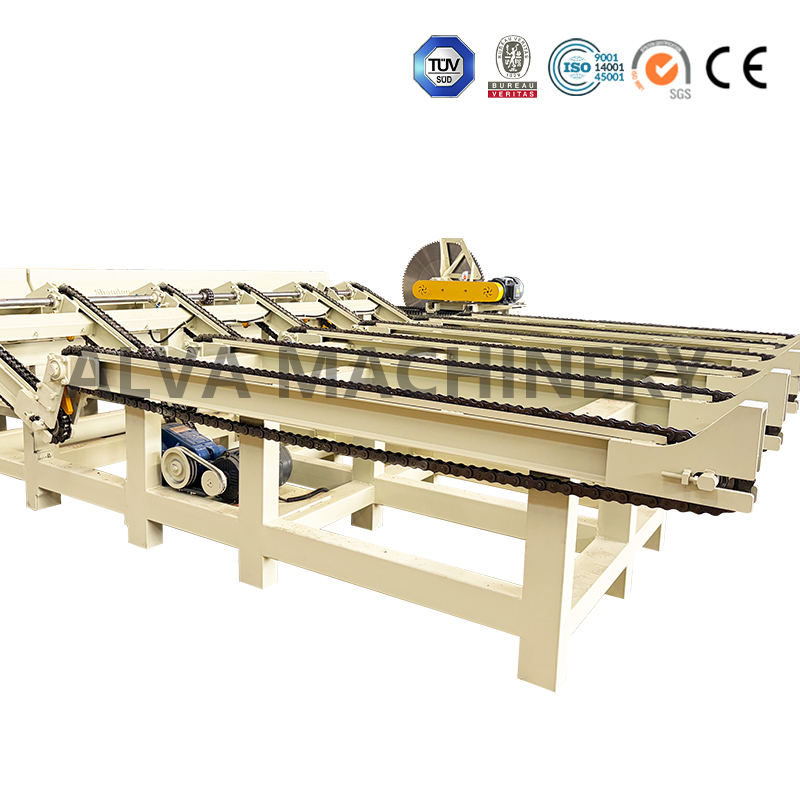

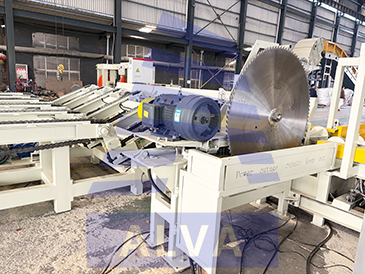

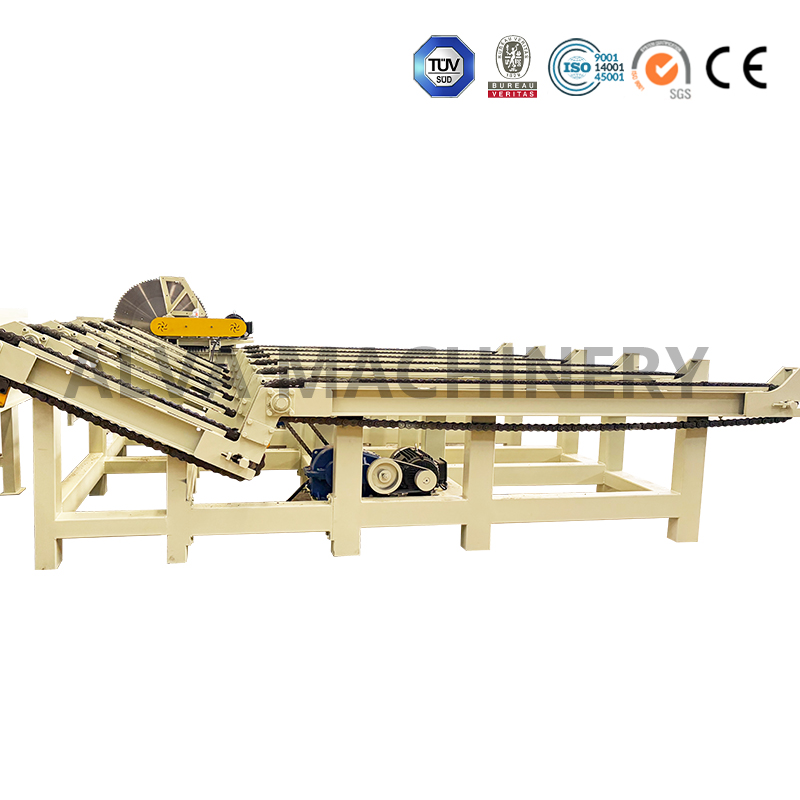

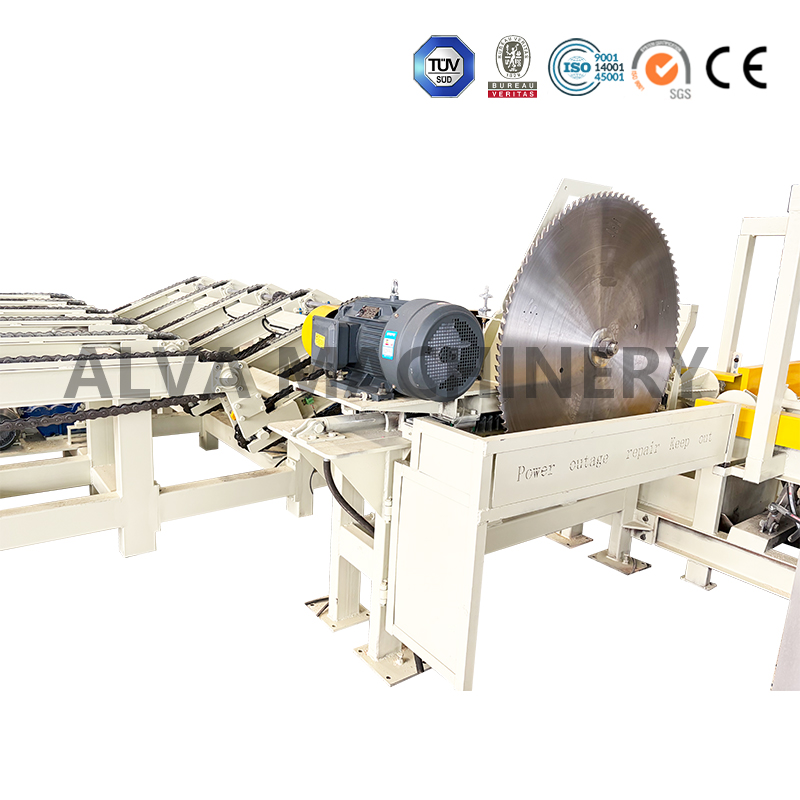

This equipment is a special-purpose log fixed-length cutting machine independently developed and manufactured by Shandong ALVA Machinery Group Co., Ltd. It is mainly used for the front-end pretreatment process of production lines such as veneer peeling and lumber manufacturing. The equipment integrates an automatic conveying system and a sawing main unit, capable of continuous log conveying and precise cutting operations.
The whole machine adopts a steel structure welded frame with stable operation and strong load-bearing capacity. It is equipped with comprehensive safety protection devices in compliance with industrial production safety standards. It can be seamlessly connected with upstream and downstream equipment to realize automated continuous production.
| Product Display |
| Product Parameter |
| Item | Specification |
| Loading Platform Motor | 1.1 kW, 6-pole |
| Loading Platform Overall Dimensions | 4100 × 1700 × 1000 mm |
| Conveyor Motor | 1.5 kW, 4-pole × 1 unit |
| Conveyor Overall Dimensions | 6000 × 800 × 1200 mm |
| Saw Head Unit Conveyor Motor | 1.5 kW, 4-pole × 1 unit |
| Saw Head Unit Saw Blade Motor | 15 kW, 6-pole × 1 unit |
| Saw Head Unit Overall Dimensions | 1700 × 1600 × 1550 mm |
| Whole Machine Total Weight | Approx. 2 tons |
| Product Advantages |

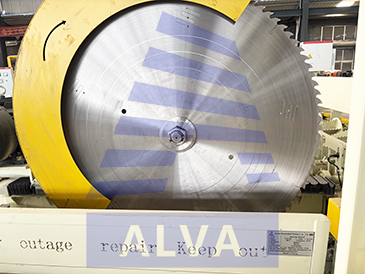

Saw Blade Performance
Equipped with a large-diameter alloy saw blade with high cutting rigidity and stable operation, capable of fixed-length log cutting with smooth cuts, suitable for processing logs of various specifications.
Motor Configuration
Each unit is driven by industrial-grade motors with reasonable power matching, stable and reliable operation, and strong load capacity, meeting the requirements of long-term continuous operation.
Conveying Performance
Adopts a chain conveying structure with smooth conveying and high positioning accuracy, enabling continuous log feeding and precise feeding, which is suitable for automated production processes.
