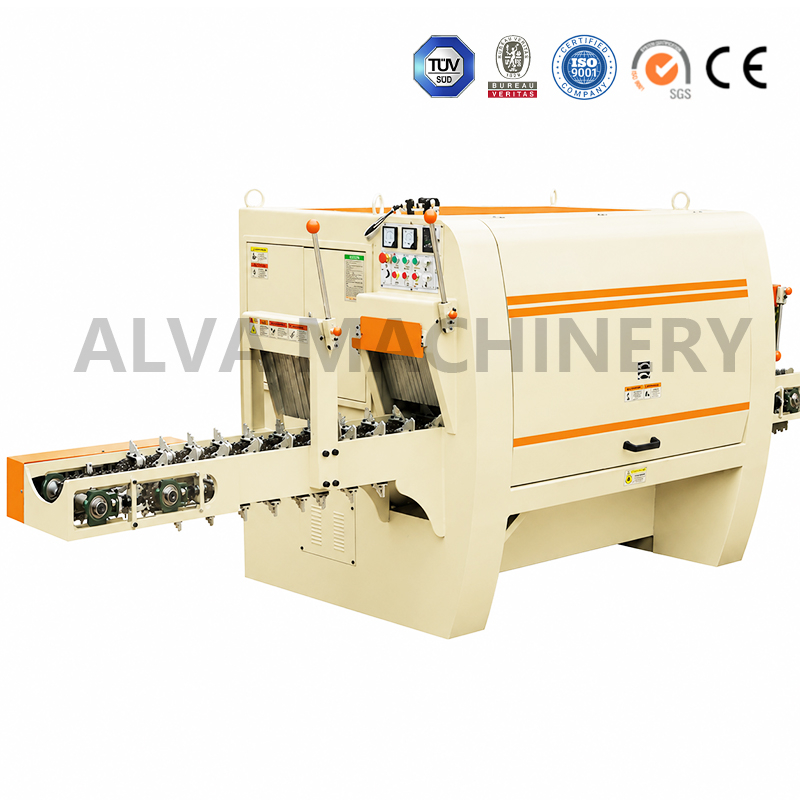

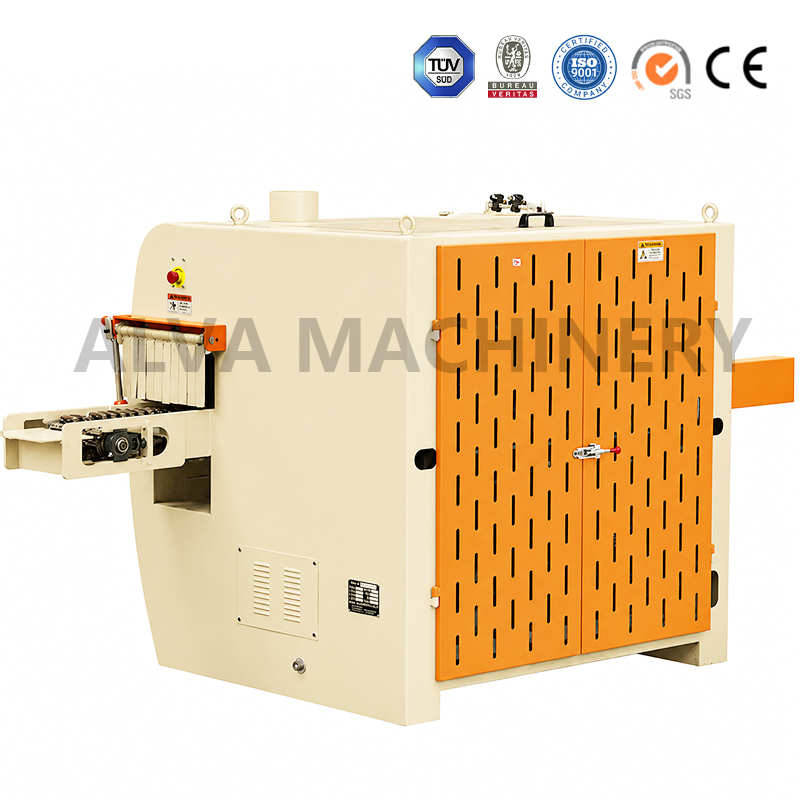

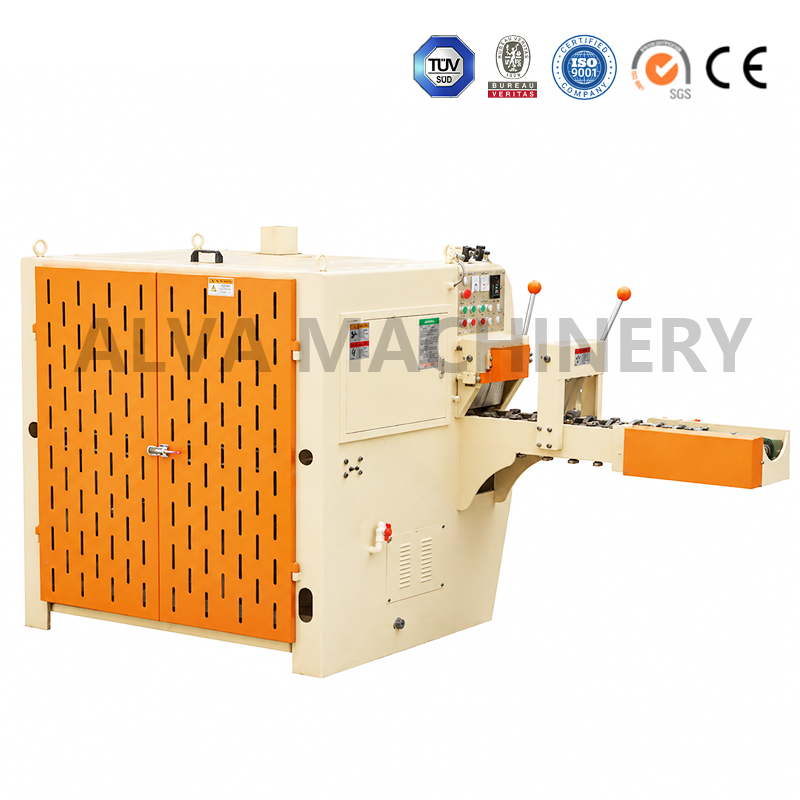

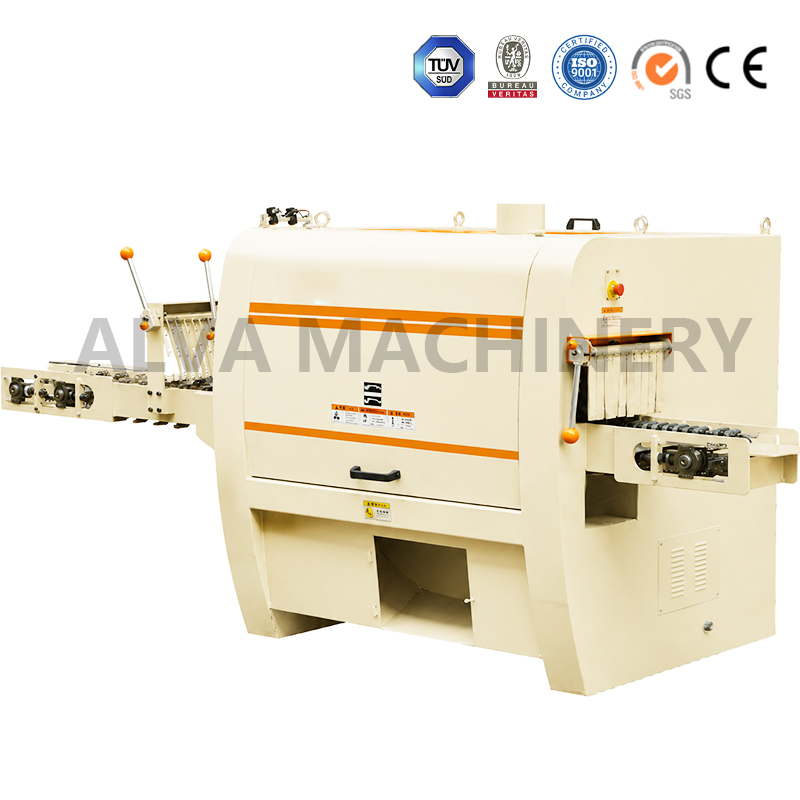

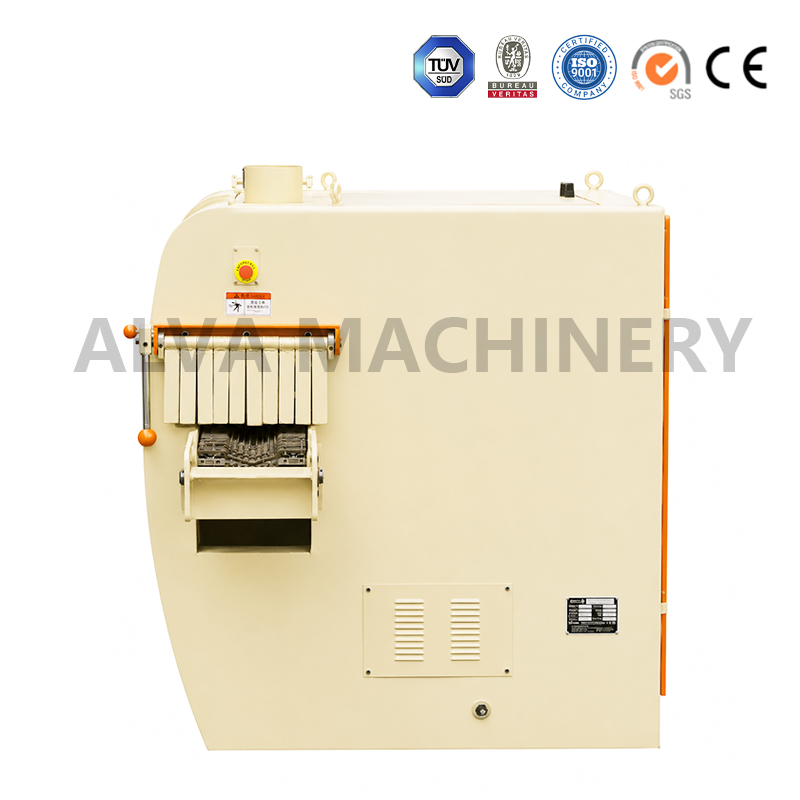

ALVA-MY-02 Round Log Cutting Machine

Alva Machinery ALVA-MY-02 Continuous Feeding Log Cutting Machine As the upgraded model of TX series log processing equipment, ALVA-MY-02 supports logs with a length range of 50cm to 200cm and is equipped with an automatic continuous feeding system for stable and efficient feeding.
This machine is compatible with pine, fir, mixed hardwood, rubber wood, acacia, poplar and various other logs. It can realize single or multiple logs squaring as well as board slicing, and works smoothly for both dry and wet timber without extra restrictions.
Widely applied in wood processing factories, it perfectly meets the production demands of finger joint boards, blockboards, cabinet panels and other wood panels, serving as the essential primary cutting equipment for timber mills and panel manufacturers.

Availability:

Quantity:



Inquire Add to Basket

Related Products

Product Description

Product Introduction

Alva Machinery ALVA-MY-02 Auto Feeding Log Multi Rip Saw

Independently developed by Alva Machinery, model ALVA-MY-02 is designed for log cutting, applicable to logs ranging from 50cm to 200cm in length. Equipped with continuous conveying feeding structure, it realizes non-stop feeding and greatly boosts production efficiency.

The machine boasts great material compatibility. It can process pine, fir, poplar, rubber wood, acacia and various mixed timbers. It can square single or multiple logs at the same time and slice logs into thin boards. Stable cutting performance is guaranteed for both air-dried dry wood and fresh wet wood without jamming.

It fits the pre-processing procedures of various panels, such as finger joint boards, blockboards and cabinet decorative panels. It is an ideal processing machine for panel factories and log processing yards.

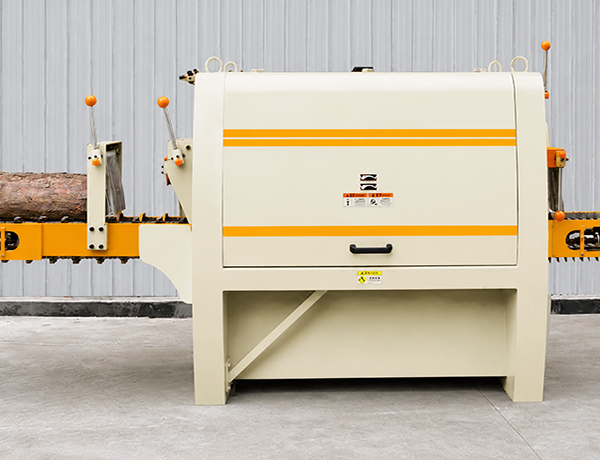

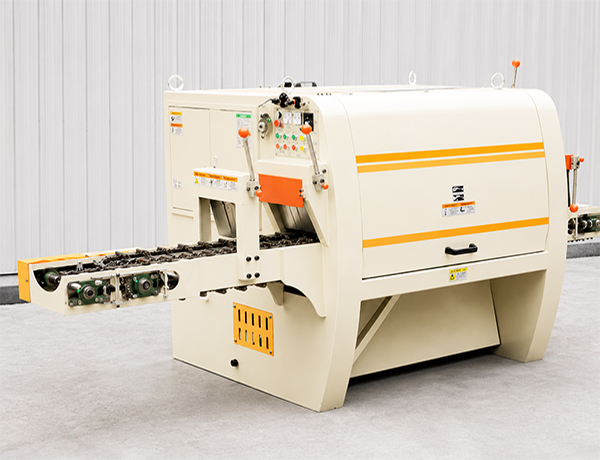

Product Display

wood machine

Product Parameter

Model	Min.width	Max.width	Min.height	Max.height	Min.lenth	Max.length	Feeding speed	weight
ALVA-MY-02-120	40	120	40	100	500	Continuous feeding	0-12	1700
ALVA-MY-02-140	40	140	40	120	500		0-12	1800
ALVA-MY-02-160	40	160	40	140	500		0-12	2000
ALVA-MY-02-180	70	180	70	160	500		0-12	2100
ALVA-MY-02-200	70	200	70	180	500		0-12	2200
ALVA-MY-02-220	70	220	70	200	500		0-12	2900
ALVA-MY-02-240	90	240	90	220	500		0-12	3200
ALVA-MY-02-260	90	260	90	240	500		0-12	3300
ALVA-MY-02-300	90	300	90	260	500		0-12	3300

Product Advantages

Automatic Continuous Feeding System

Equipped with closed-loop chain continuous conveyor, it supports non-stop feeding of 50–200cm logs without manual interruption. It stably holds single or multiple logs for squaring and slicing, jam-free for both dry and wet timber. Its production capacity is 40% higher than conventional single-feed saws, perfectly matching mass production lines of panel factories.

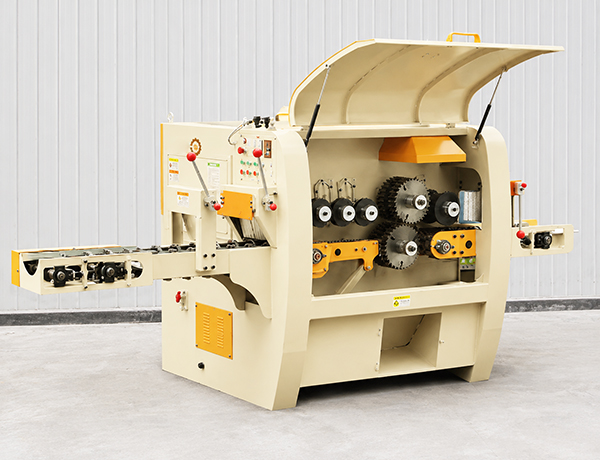

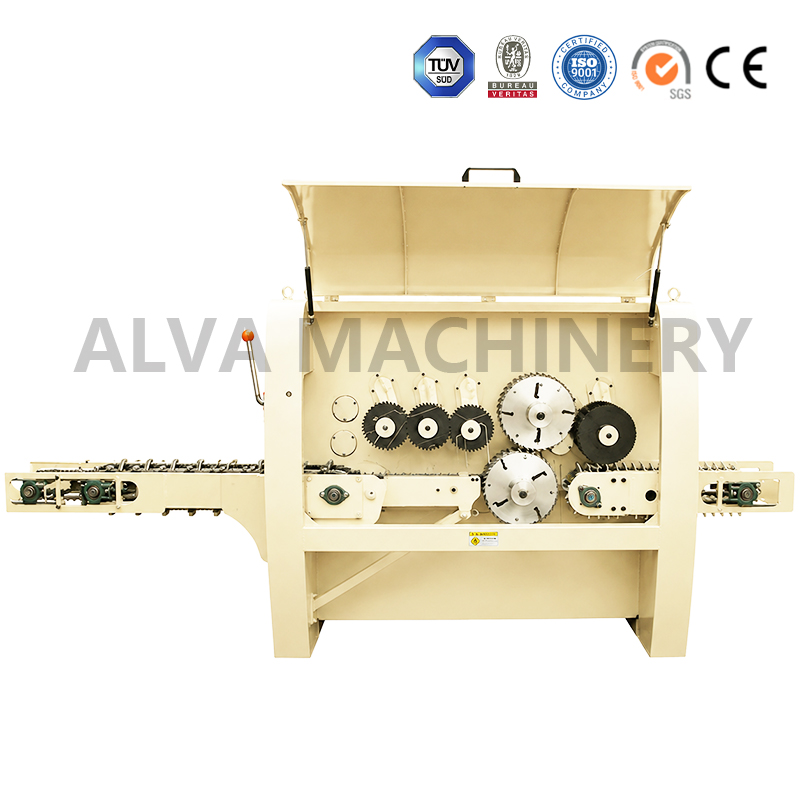

Full Flip-open Top Cover for Easy Maintenance

Hydraulic flip cover fully exposes internal saw spindles, gears and blades after opening. Saw blade replacement, chip cleaning and mechanical inspection can be finished without disassembling the machine casing. Separated external control handles and electrical panel cut down maintenance time and reduce production downtime greatly.

Wide Panel Production Compatibility

It works with pine, fir, rubber wood, acacia, poplar and mixed hardwoods, performing stable cutting on both air-dried and fresh logs. It can produce standard square timber and thin veneer blanks, covering pre-processing of finger joint boards, blockboards, cabinet decorative panels and more.
