ALVA-MY-01 Log Multi-Rip Saw

Alva ALVA-MY-01 Multi-Functional Log Multi-Rip Saw works for both round logs and square lumbers. It realizes log squaring, large square splitting and half-timber processing, compatible with both wet and dry wood. It processes pine, fir, rubber wood, poplar, miscellaneous wood and other logs. The machine cabinet is precision-processed by CNC machining centers with high concentricity of holes, accurate center distance and micron-level horizontal & vertical precision, delivering smooth sawn surfaces and outstanding dimensional accuracy.

Availability:

Quantity:



Inquire Add to Basket

Related Products

Product Description

Product Introduction

The ALVA-MY-01 is a multi-functional timber cutting machine launched by Alva Machinery. It can process both round logs and square lumbers in one unit, supporting multiple working scenarios including log squaring, cutting large squares into small ones and half-timber processing. It delivers stable cutting performance for both wet and dry wood with strong universal adaptability.

This machine is suitable for processing various logs such as pine, fir, miscellaneous wood, rubber wood, acacia and poplar, meeting the normal production demands of most forest farms and timber processing plants.

The whole machine frame and cabinet are integrally precision-machined by CNC machining centers. The spindle holes boast excellent concentricity with negligible errors in the center distance between each mounting hole.

The horizontal and vertical precision of the machine is controlled at the micron level. It runs with slight vibration during high-speed cutting, producing flat and smooth lumber surfaces with high dimensional accuracy. It greatly reduces subsequent sanding procedures and improves timber yield and finished product quality.

Product Display

wood machine

Product Parameter

Model	Min.width	Max.width	Min.height	Max.height	Min.length	Working State	Total power	Overall Dimensions	Feeding speed
ALVA-MY-01-120	60	120	40	110	500	Continuous feeding	30	340014001450	0-12
ALVA-MY-01-140	70	250	40	130	500		45	340014001450	0-12
ALVA-MY-01-160	80	250	40	155	500		45	340014001450	0-12
ALVA-MY-01-180	90	250	60	165	550		50	360014001600	0-12
ALVA-MY-01-200	100	250	60	185	550		55	360014001600	0-12
ALVA-MY-01-220	110	250	60	200	570		58	360014001600	0-12
ALVA-MY-01-240	120	350	80	235	650		68	390016501600	0-12
ALVA-MY-01-260	130	350	80	260	670		91	390016501600	0-12
ALVA-MY-01-300	150	350	110	285	700		55	390016501600	0-12
ALVA-MY-01-160-300	80	350	40	140	500		61	390016501600	0-12
ALVA-MY-01-180-300	90	300	60	165	550		75	390016501600	0-12
ALVA-MY-01-200-300	100	300	60	190	580		55	390016501600	0-12
ALVA-MY-01-220-300	110	300	70	200	600		55	390016501600	0-12
ALVA-MY-01-160-350	80	350	40	140	500		55	390016501600	0-12
ALVA-MY-01-180-350	90	350	60	165	550		60	390016501600	0-12
ALVA-MY-01-200-350	100	350	60	190	580		75	390016501600	0-12
ALVA-MY-01-220-350	110	350	70	200	600		75	390016501600	0-12

Product Advantages

Multi-functional & Wide Material Compatibility

It can process round logs and square lumbers, supports log squaring, large timber splitting, half-timber cutting, and works perfectly with both dry and wet wood. Compatible with pine, fir, poplar, rubber wood, acacia and mixed hardwoods, meeting diversified production needs of timber factories.

CNC Precision Machined Frame, Micron-level Cutting Accuracy

The whole frame and cabinet are integrally processed by CNC machining center, with high concentricity of spindle holes and ultra-precise hole spacing. Stable high-speed operation with low vibration delivers smooth lumber surfaces and tiny dimensional tolerance, raising timber yield and reducing sanding work.

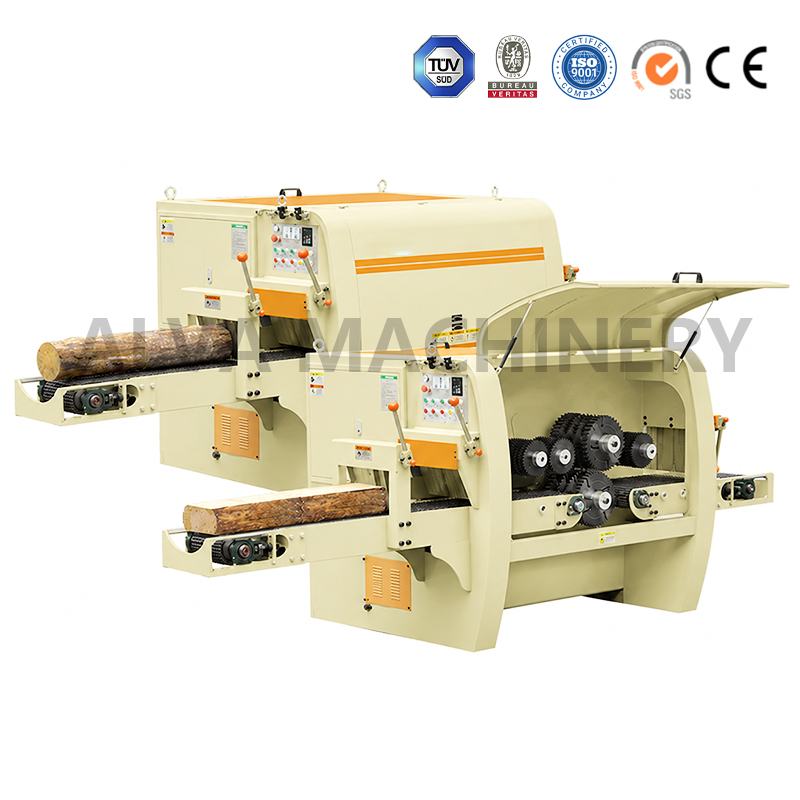

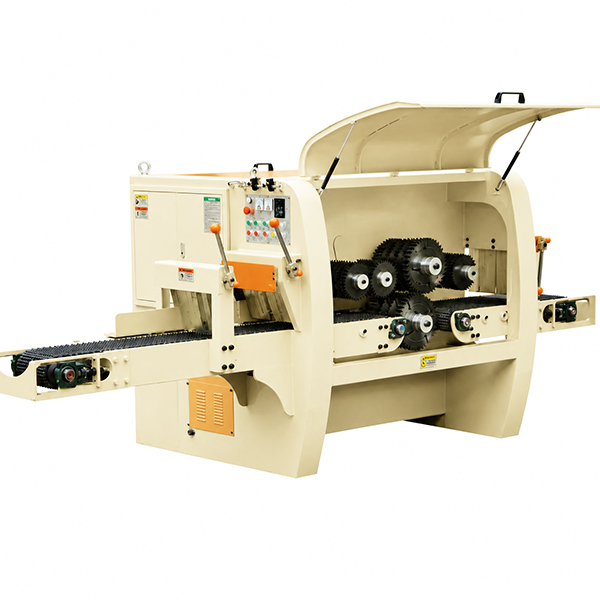

Flip-open Top Cover, Easy Maintenance & Safe Operation

The openable top cover fully exposes internal saw spindles and gears, making saw blade replacement and internal cleaning much faster. External control panel with intuitive adjustment handles simplifies operation, cutting down maintenance time and failure rate.
