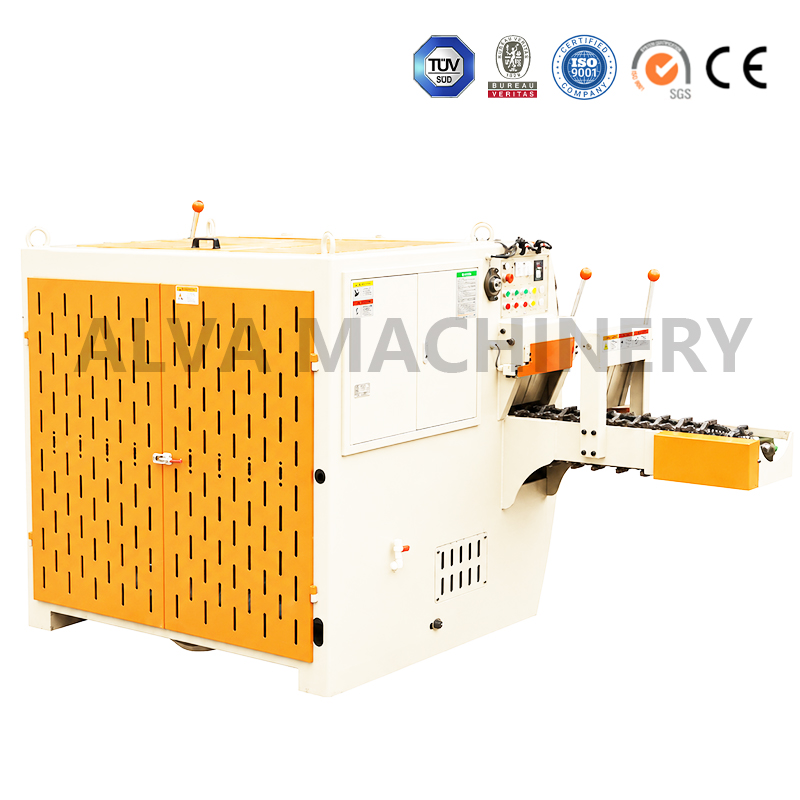

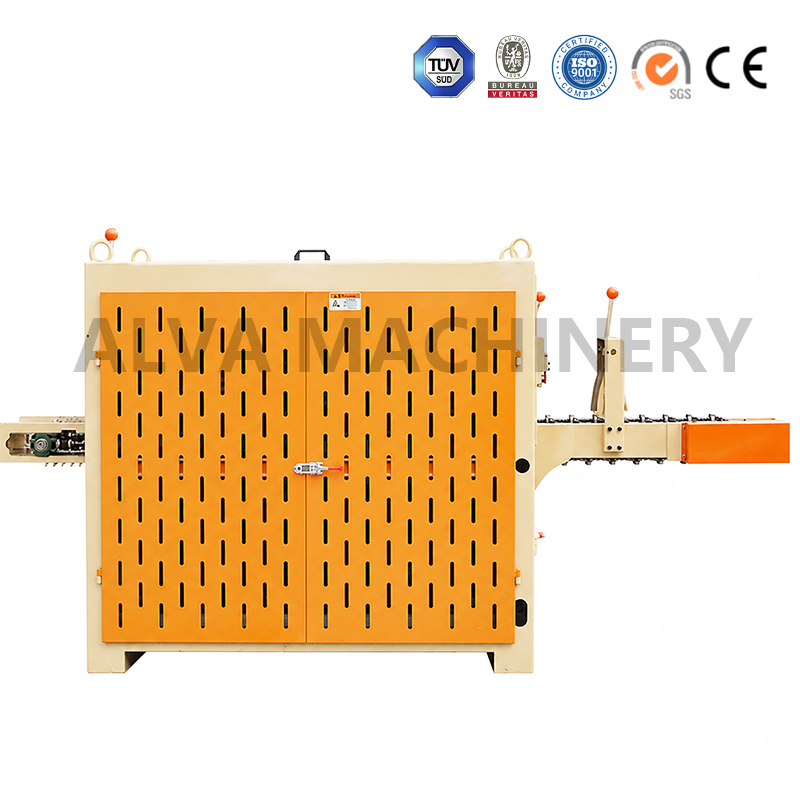

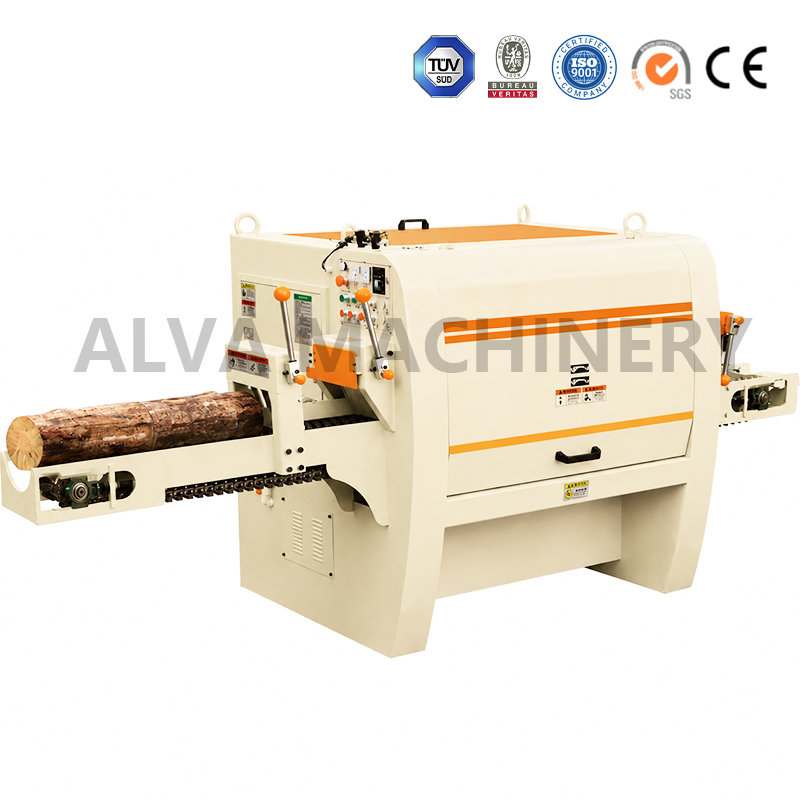

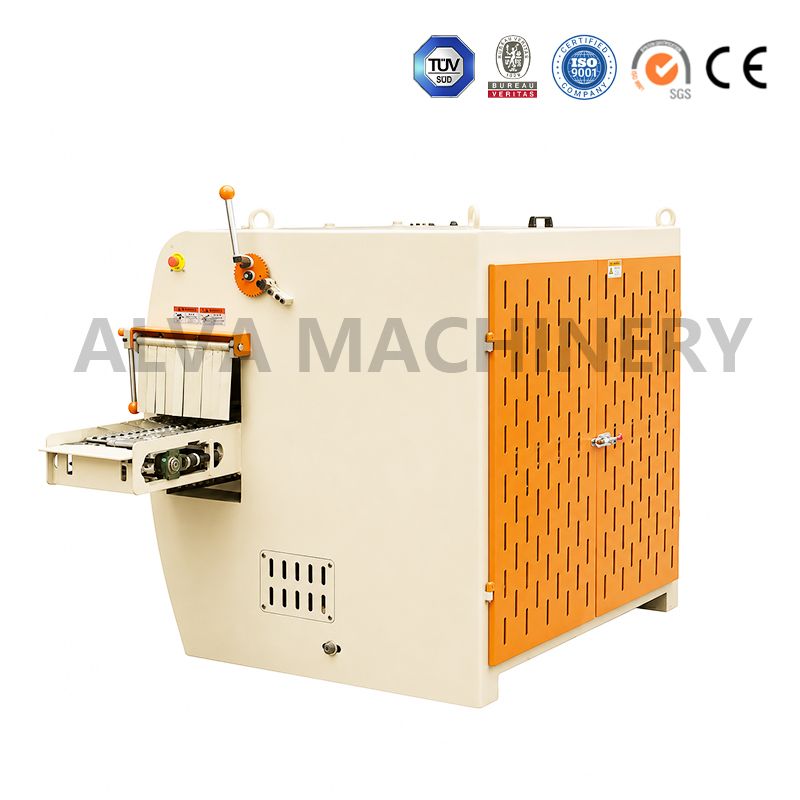

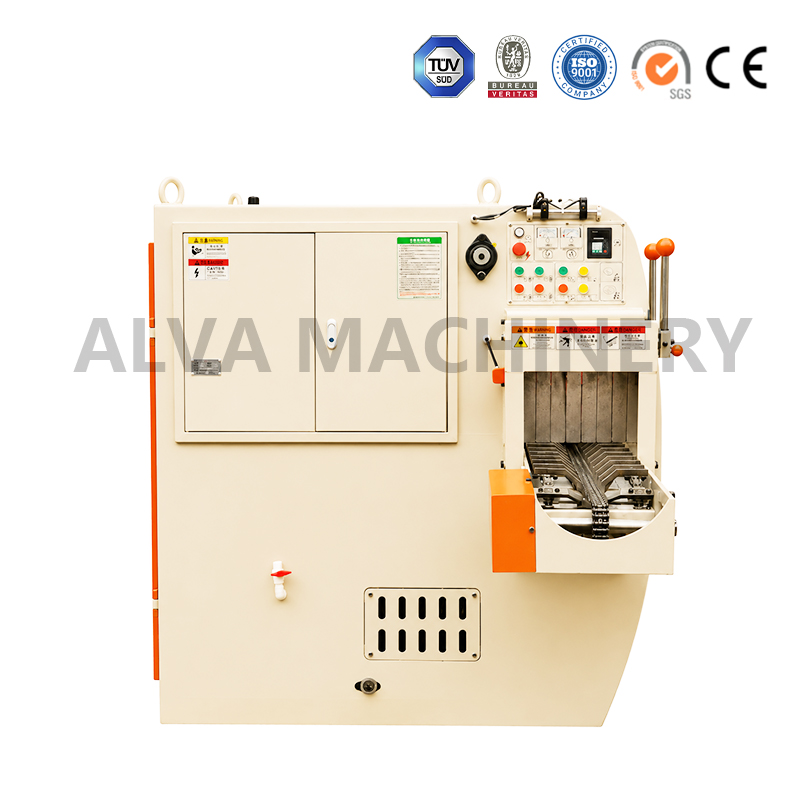

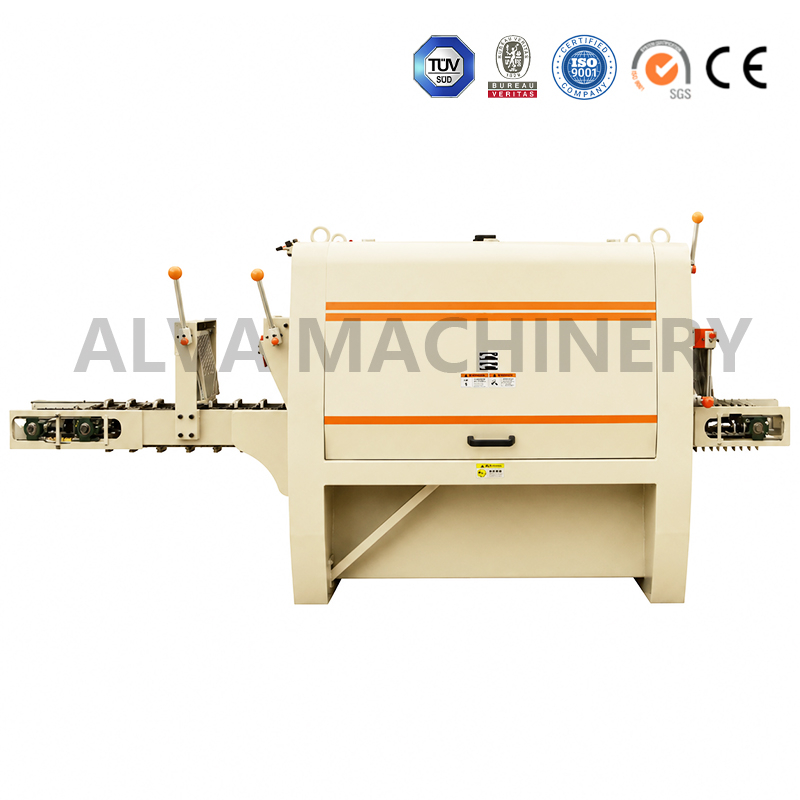

ALVA-MY-03 Round Log Multi-Blade Saw

Alva Machinery ALVA-MY-03 Log Multi Rip Saw Model ALVA-MY-03 log multi rip saw is designed for long logs of all wood species. It supports both dry and wet cutting, and can complete log squaring and board slicing. It is compatible with pine, fir, mixed hardwood, rubber wood, acacia, poplar and other logs.
The machine frame and cabinet are precision processed by CNC machining centers, featuring high concentricity of holes and precise center distance between mounting positions. Horizontal and vertical tolerance is controlled within microns, delivering smooth sawn surfaces and outstanding cutting accuracy.

Availability:

Quantity:



Inquire Add to Basket

Related Products

Product Description

Product Introduction

Alva Machinery ALVA-MY-03 Multi Rip Saw For Long Logs

ALVA-MY-03 is specially developed for cutting long logs of all timber varieties. Flexible cutting modes allow smooth processing of both fresh wet logs and air-dried dry timber, capable of log squaring and thin board slitting. It fits pine, fir, poplar, rubber wood, acacia and assorted hardwoods.

The frame and cabinet are fully milled by CNC machining centers, delivering perfect coaxiality of spindle holes and consistent spacing of positioning holes. Horizontal and vertical precision is controlled at micron level. The sawn timber comes with burr-free, even surface and consistent dimensional accuracy during long-term operation.

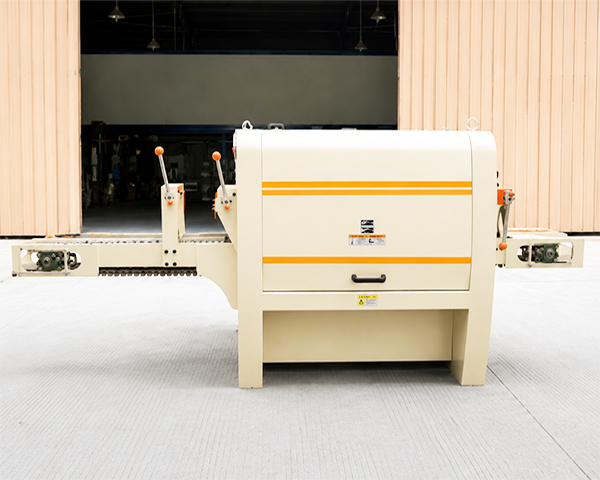

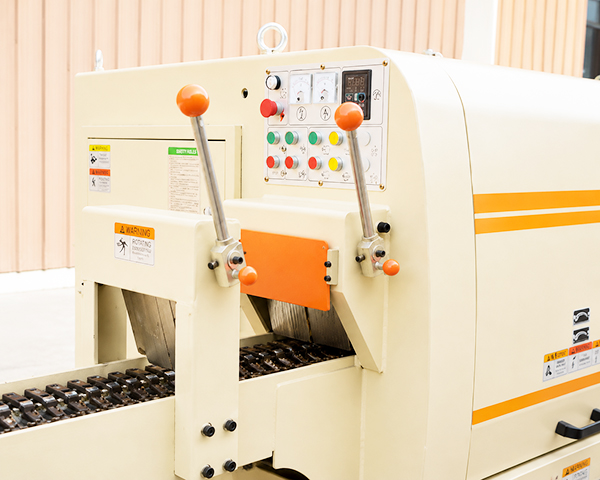

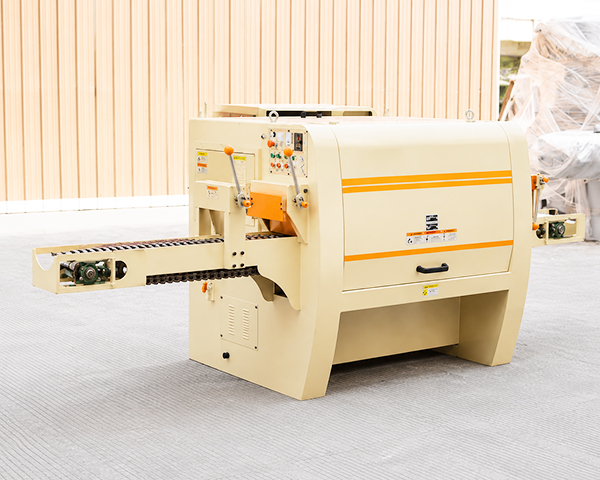

Product Display

wood machine

Product Parameter

Model	Min.width	Max.width	Min.height	Max.height	Min.length	Max.length	Total power	Feeding speed	Weight
ALVA-MY-03-120	50	120	50	100	500	4000	32	0-12	1500
ALVA-MY-03-140	60	140	60	120	500	4000	32	0-12	1600
ALVA-MY-03-160	70	160	70	140	500	4000	38	0-12	1700
ALVA-MY-03-180	80	180	80	160	600	4000	42	0-12	1750
ALVA-MY-03-200	90	200	90	180	600	4000	50	0-12	1800
ALVA-MY-03-220	100	220	100	200	600	4000	55	0-12	1800
ALVA-MY-03-240	110	240	110	220	800	4000	60	0-12	2300
ALVA-MY-03-260	120	260	120	240	800	4000	68	0-12	2600
ALVA-MY-03-280	140	300	140	280	800	4000	75	0-12	2800

Product Advantages

Continuous Stable Feeding Boosts Mass Production Efficiency

Equipped with a closed-loop chain conveying mechanism, this machine delivers uninterrupted log feeding without manual assistance. It firmly holds both single and multiple logs to avoid slipping or jamming, supporting smooth cutting of dry and wet timber and greatly lifting continuous production capacity for panel factories.

CNC Precise Machining Ensures Consistent Sawing Accuracy

All frames and cabinets are integrally processed by CNC machining centers to guarantee perfect hole concentricity and unified positioning spacing. Micron-level horizontal and vertical control eliminates long-term structural deformation, delivering flat sawn surfaces and steady dimensional precision for all finished timber.

Flip-top Cover Design Simplifies Daily Machine Maintenance

The hydraulic flip-top cover structure fully exposes internal spindles, drive gears and cutting blades after full opening. Operators can quickly finish blade replacement and chip cleaning without disassembling the outer casing, cutting production downtime and lowering long-term overall operation costs for all wood processing lines.
