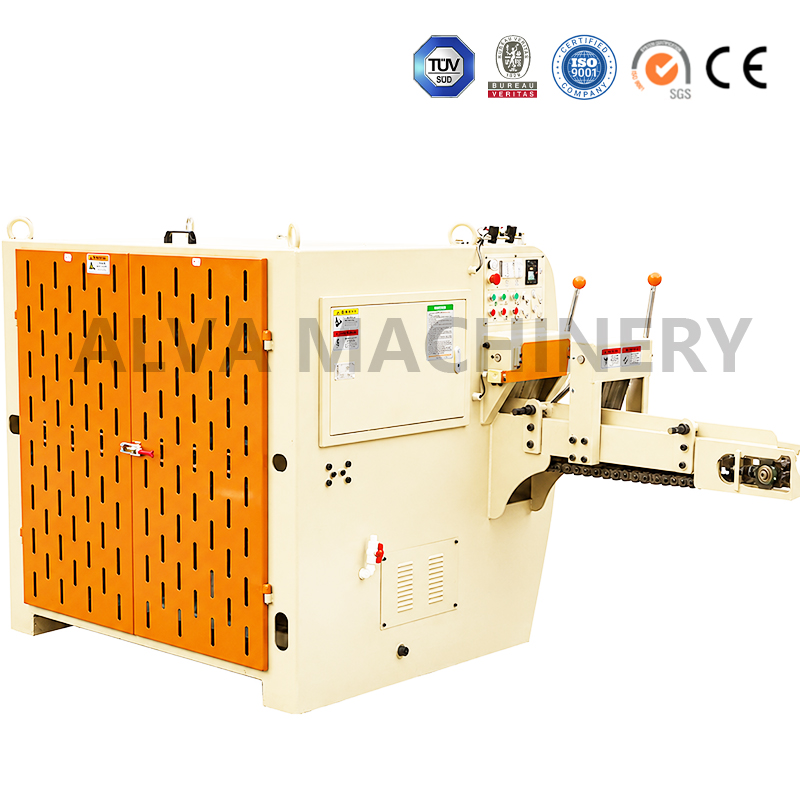

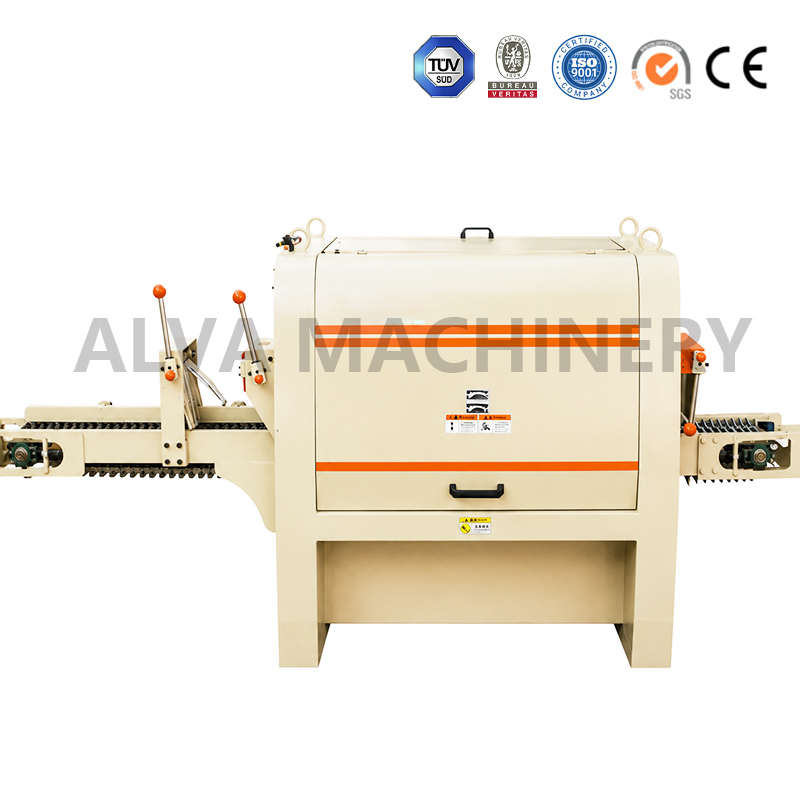

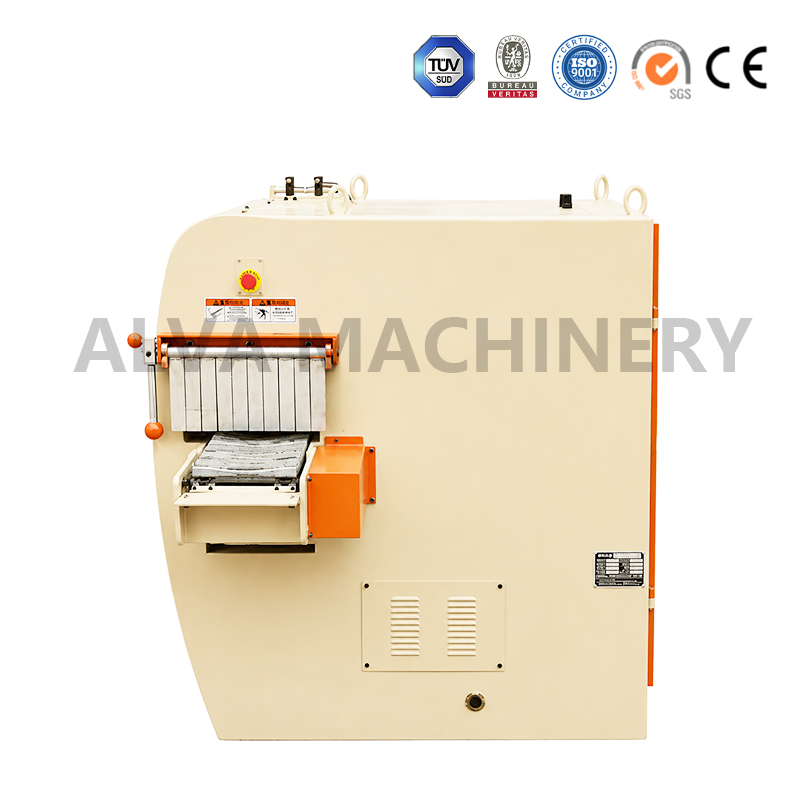

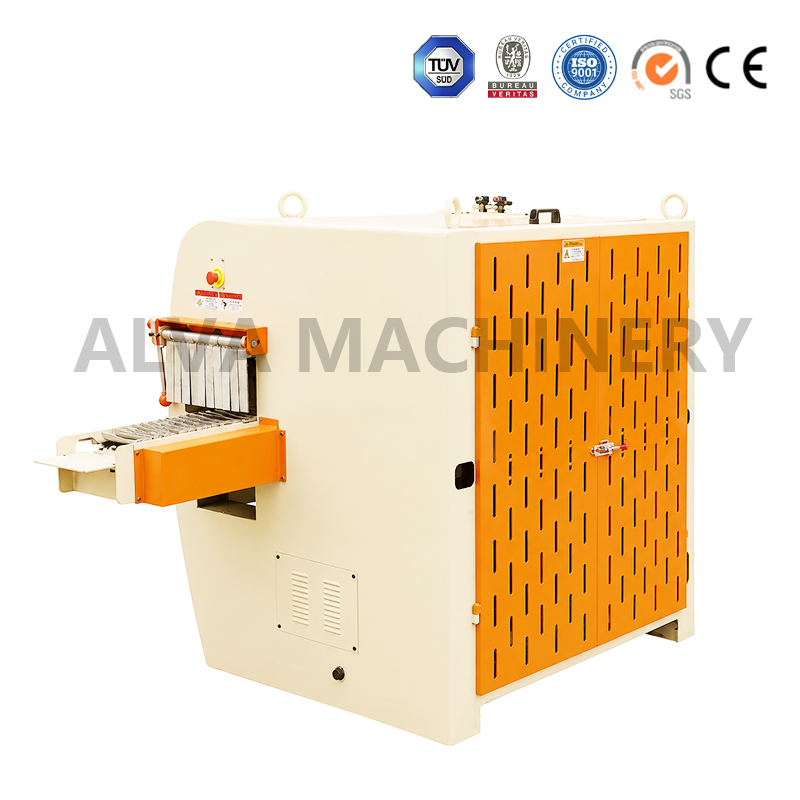

ALVA-MY-04 Log Multi Cutting Saw

Alva Machinery ALVA-MY-04 Universal Log Multi Rip Saw Model ALVA-MY-04 is an all-round log cutting machine, suitable for processing logs with lengths ranging from 50cm to 200cm, equipped with a continuous feeding system for non-stop operation.
It is compatible with various log species including pine, fir, mixed hardwood, rubber wood, acacia and poplar. The machine can process single square, double squares or multiple squares via central cutting, and also slice logs into thin boards. Stable cutting performance is available for both air-dried dry logs and fresh wet timber.
It serves as the preferred pre-processing machine for producing finger joint boards, blockboards, cabinet panels and other similar timber products, widely adopted by all kinds of wood panel factories.

Availability:

Quantity:



Inquire Add to Basket

Related Products

Product Description

Product Introduction

Alva Machinery ALVA-MY-04 Multi-purpose Log Rip Saw

ALVA-MY-04 is an integrated multi-functional log cutting machine engineered for 50–200cm long logs, fitted with standard continuous feeding transmission for uninterrupted automatic operation without manual breaks.

Compatible with most commercial timber varieties such as poplar, acacia, rubber wood, fir, pine and assorted hardwoods, it delivers smooth cutting for both air-dried and moisture-containing logs regardless of water content. It supports multiple processing modes, producing one, two or multiple standard square timbers through central cutting, as well as thin raw boards to meet diverse forming requirements.

Optimized for primary processing at the front end of panel production lines, it caters to raw material cutting of finger-joint substrates, blockboard cores and cabinet panels, ranking as the top choice for log preprocessing among panel manufacturers.

Product Display

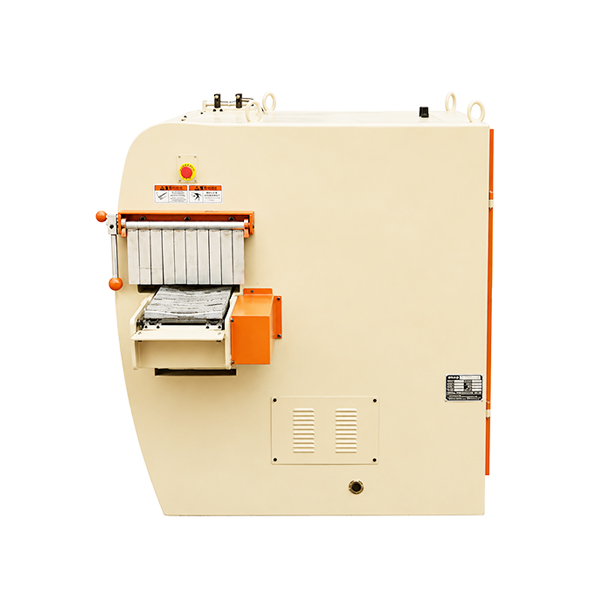

wood machine

Product Parameter

Model	Min.width	Max.width	Min.width	Max.width	Min.length	Max.length	Overall Dimensions	Feeding speed	Weight
ALVA-MY-04-120	40	120	40	100	500	Continuous feeding	340014001400	0-12	1700
ALVA-MY-04-140	40	140	40	120	500		340014001400	0-12	1800
ALVA-MY-04-160	40	160	40	140	500		340014001400	0-12	2000
ALVA-MY-04-260	120	260	120	240	1000		430016001600	0-12	3200
ALVA-MY-04-300	140	300	140	280	1200		430016001600	0-12	3300
ALVA-MY-04-350	160	350	160	330	1500		430016001600	0-12	3800

Product Advantages

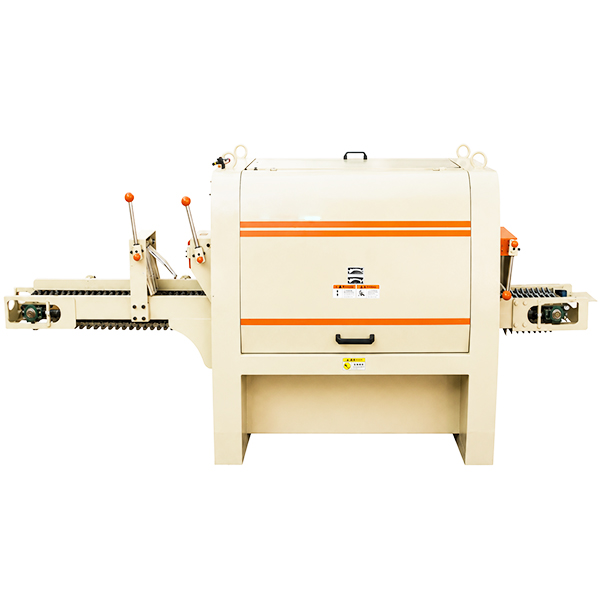

Stable Chain Conveying Structure for Continuous Log Processing

Equipped with heavy-duty chain feeding assemblies on both inlet and outlet sides, this machine delivers steady log transmission without slipping or blockage. It adapts to long timber within specified length range and realizes non-stop continuous feeding, effectively improving overall processing efficiency for large-volume wood production lines.

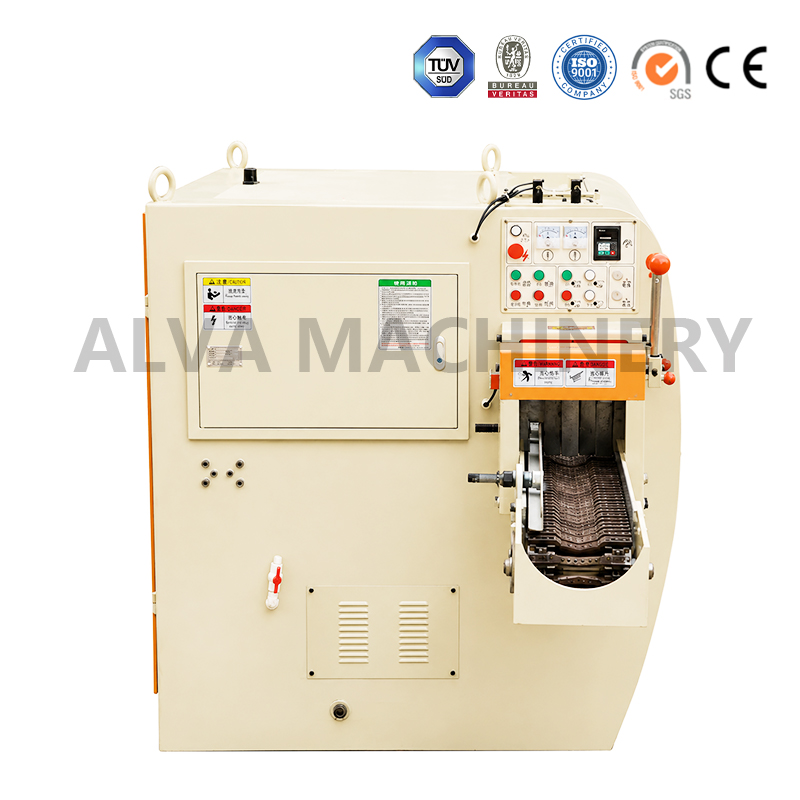

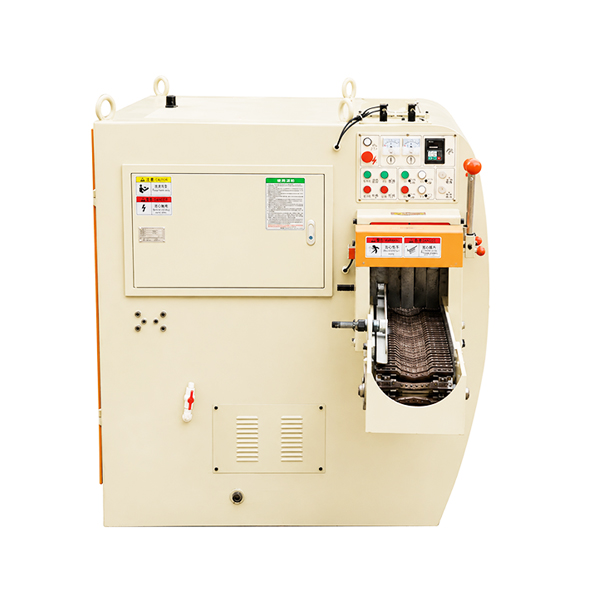

Centralized Control Panel for Convenient Parameter Adjustment

The integrated control panel gathers all operation buttons, meters and digital displays in one compact area. Operators can quickly adjust feed speed, cutting specifications and running status without complicated steps, lowering operation learning cost and boosting daily production stability for all workshops.

Full Visualized Structure for Easy Daily Inspection & Maintenance

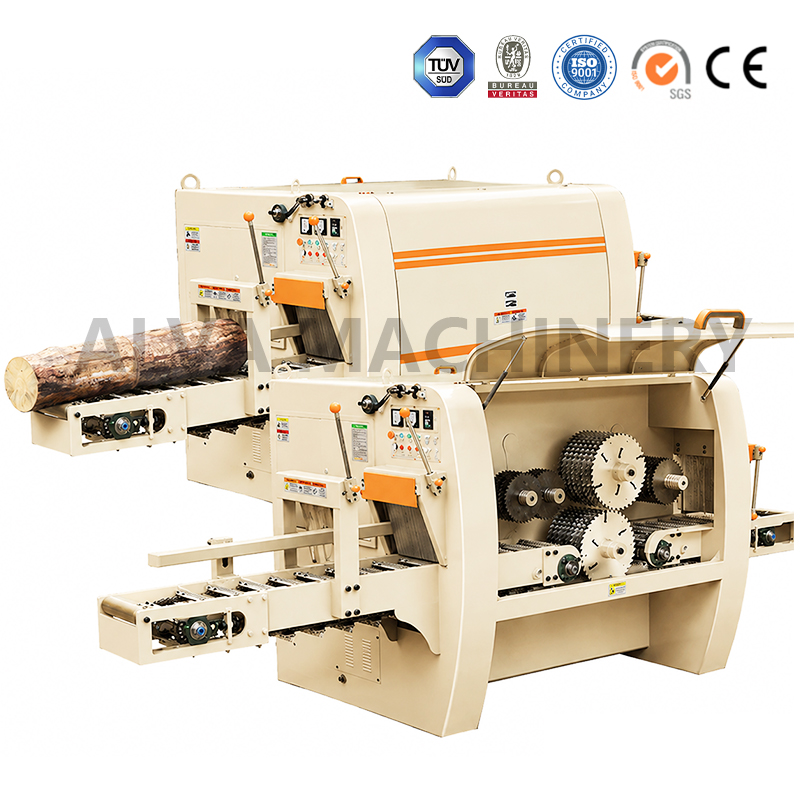

The machine adopts open-type feeding channel and detachable side shell layout, making internal saw shafts and drive parts fully visible. Staff can complete blade replacement and internal cleaning conveniently, cutting equipment downtime and reducing long-term comprehensive operation expenditure.
